70 × 80 cm platform • 600 kg capacity
Platform size
70 × 80 cm
Capacity
600 kg
Load cell system
Single load cell
Protection
IP68

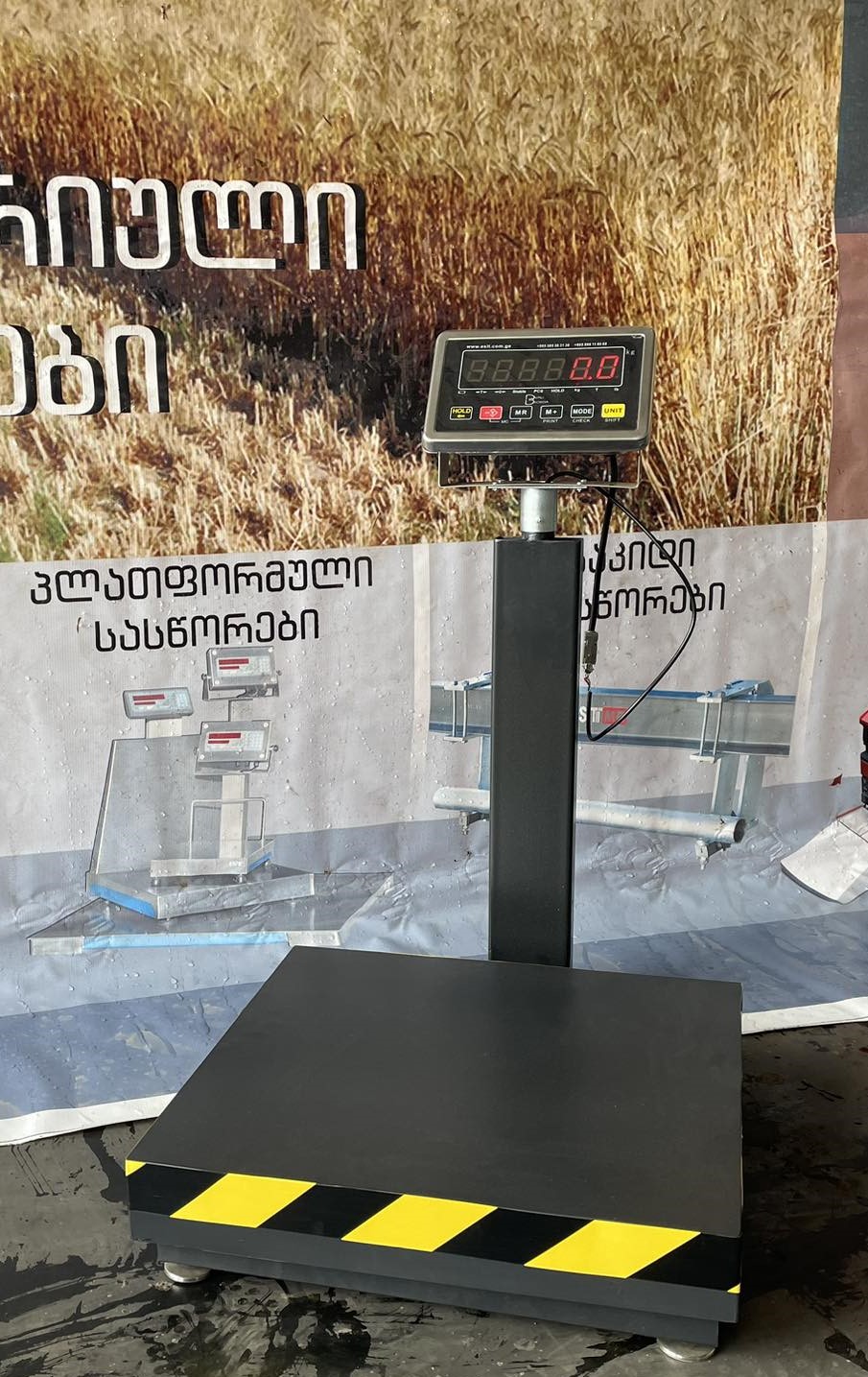

DVALI 600 kg Platform Scale – 70 × 80 cm
70 × 80 cm platform scale with 600 kg capacity, CE, single load cell system, IP68 platform protection, standard overload protection, and the DVALI DS 318 indicator. The standard version uses a steel pan and steel frame, while stainless steel pan and frame are available as an option. Additional interfaces, functions, and request-based configurations are available according to project requirements.
Technical specifications
Key specifications for the exact 70 × 80 cm / 600 kg model.
| Parameter | Value |
|---|---|
| Product type | Platform scale |
| Official product name | DVALI 600 kg Platform Scale – 70 × 80 cm |
| Platform size | 70 × 80 cm |
| Capacity | 600 kg |
| Standard construction | Steel pan, steel frame |
| Optional construction | Stainless steel pan and frame |
| Load cell system | Single load cell |
| Platform protection class | IP68 |
| Indicator | Standard DVALI DS 318 indicator |
| Indicator protection class | IP54 |
| Display division | 200 g |
| Standard communication output | None |
| Optional interfaces / outputs | RS232 / Modbus / Ethernet / printer output / external display / Bluetooth / Wi-Fi |
| Optional functions | Piece counting / pricing / reporting |
| Legal-trade configuration | Available on request |
| Ex / hazardous-area configuration | Available on request |
| Overload protection | Included in standard configuration |
| Approval | CE |
| Calibration documentation | Factory calibration certificate |
| Operating temperature | -10°C...+40°C |
| Power supply | 220VAC - 50Hz with rechargeable battery 6V 4.5Ah |
| Accessory | Remote display as option |
| Warranty | 1 year |
| Typical application areas | Warehouses, goods receiving, packaging, internal logistics, and request-based food, pharma, biotech, chemical, refinery, and hazardous-area projects according to configuration |
This exact 70 × 80 cm / 600 kg model is a practical choice for warehouse receiving,
packaging support, internal logistics, and compact industrial weighing where a controlled
platform size and a 600 kg working range are the right match.

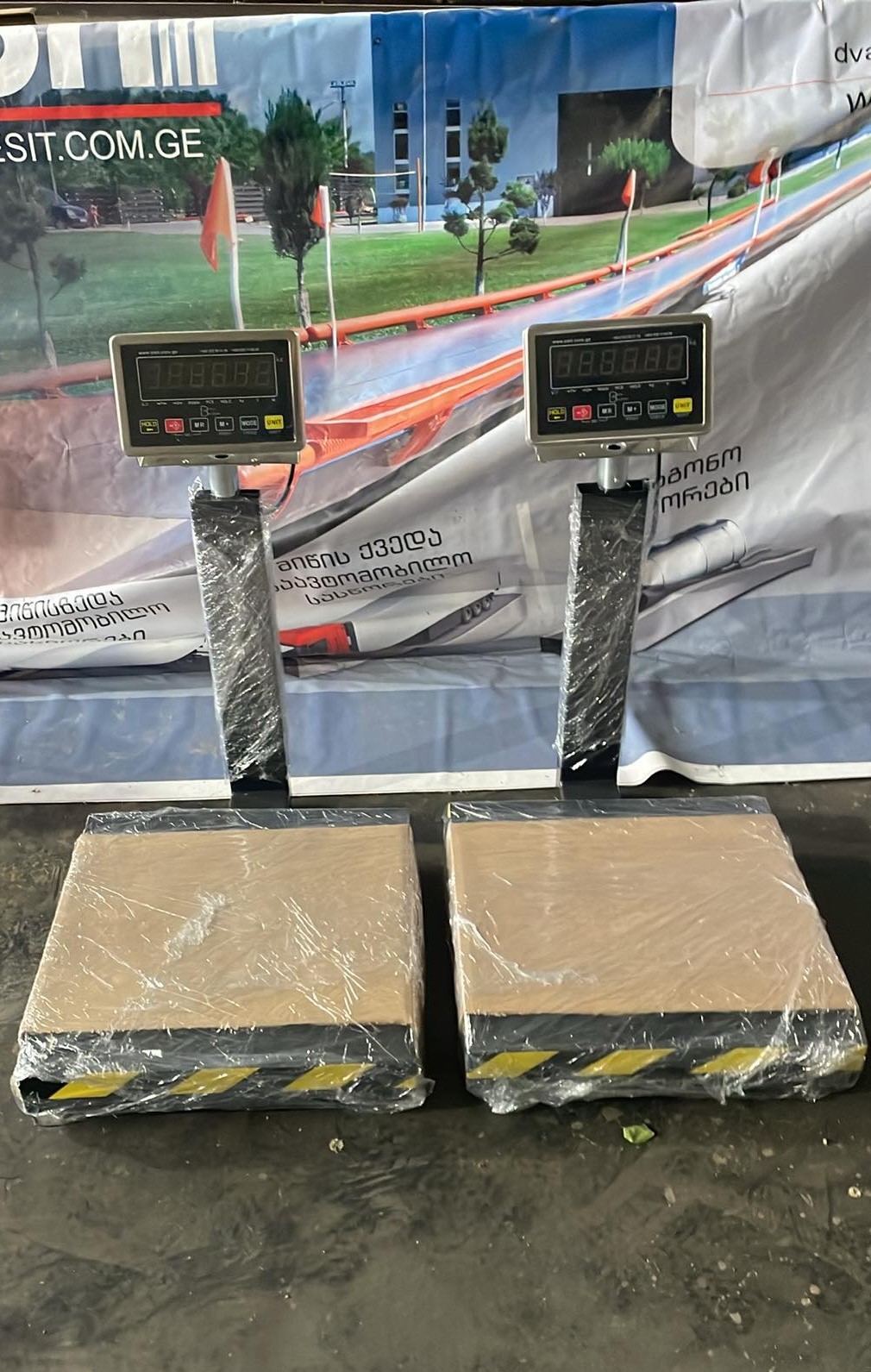

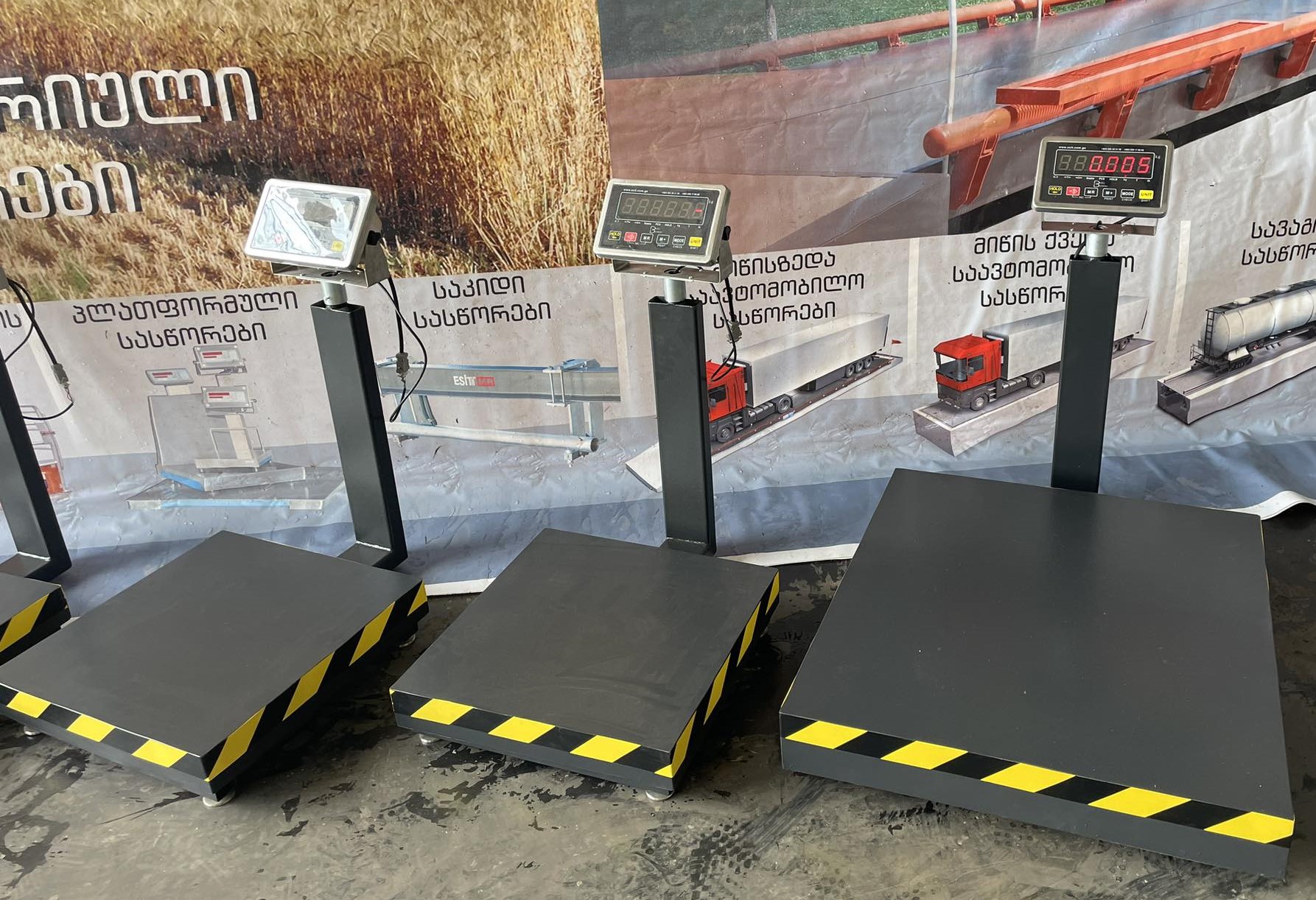

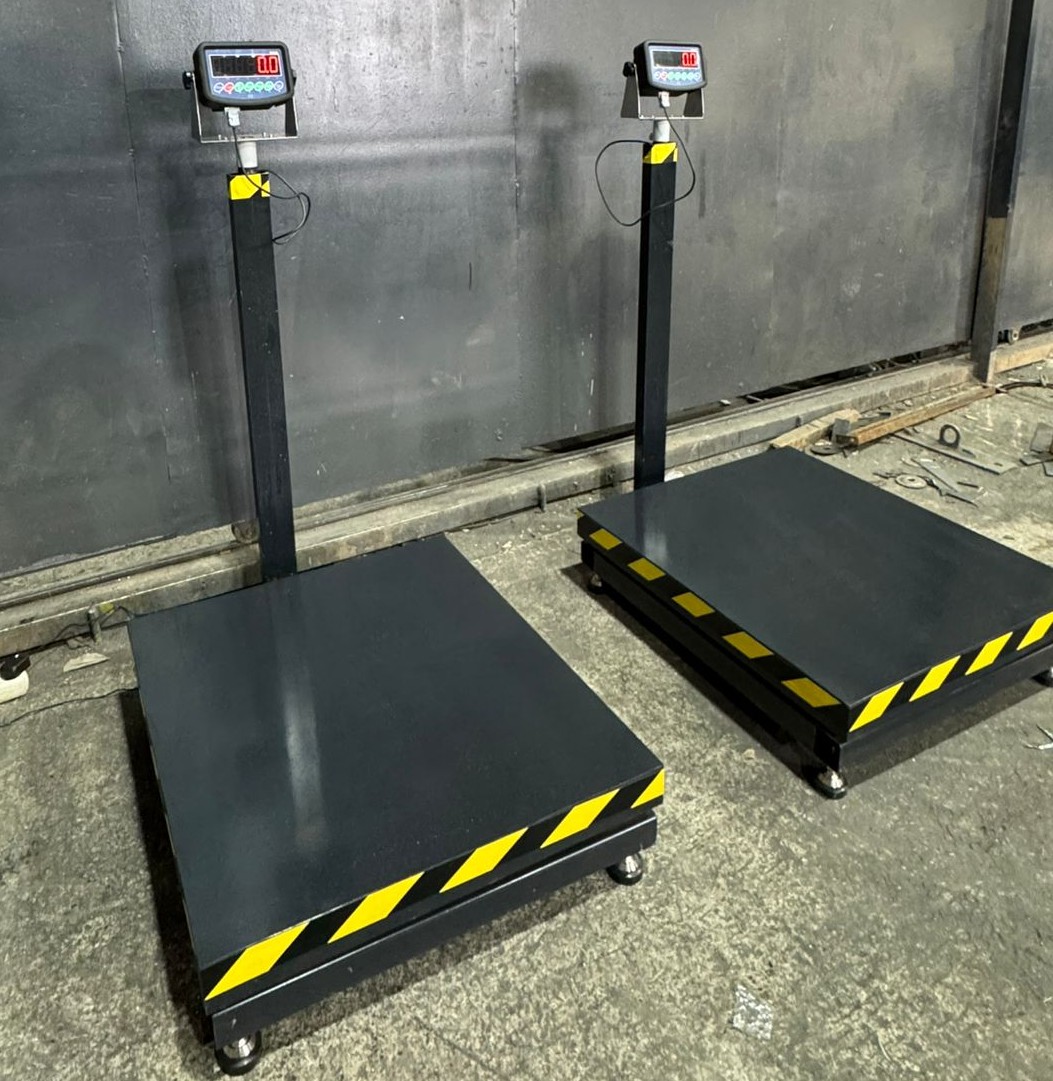

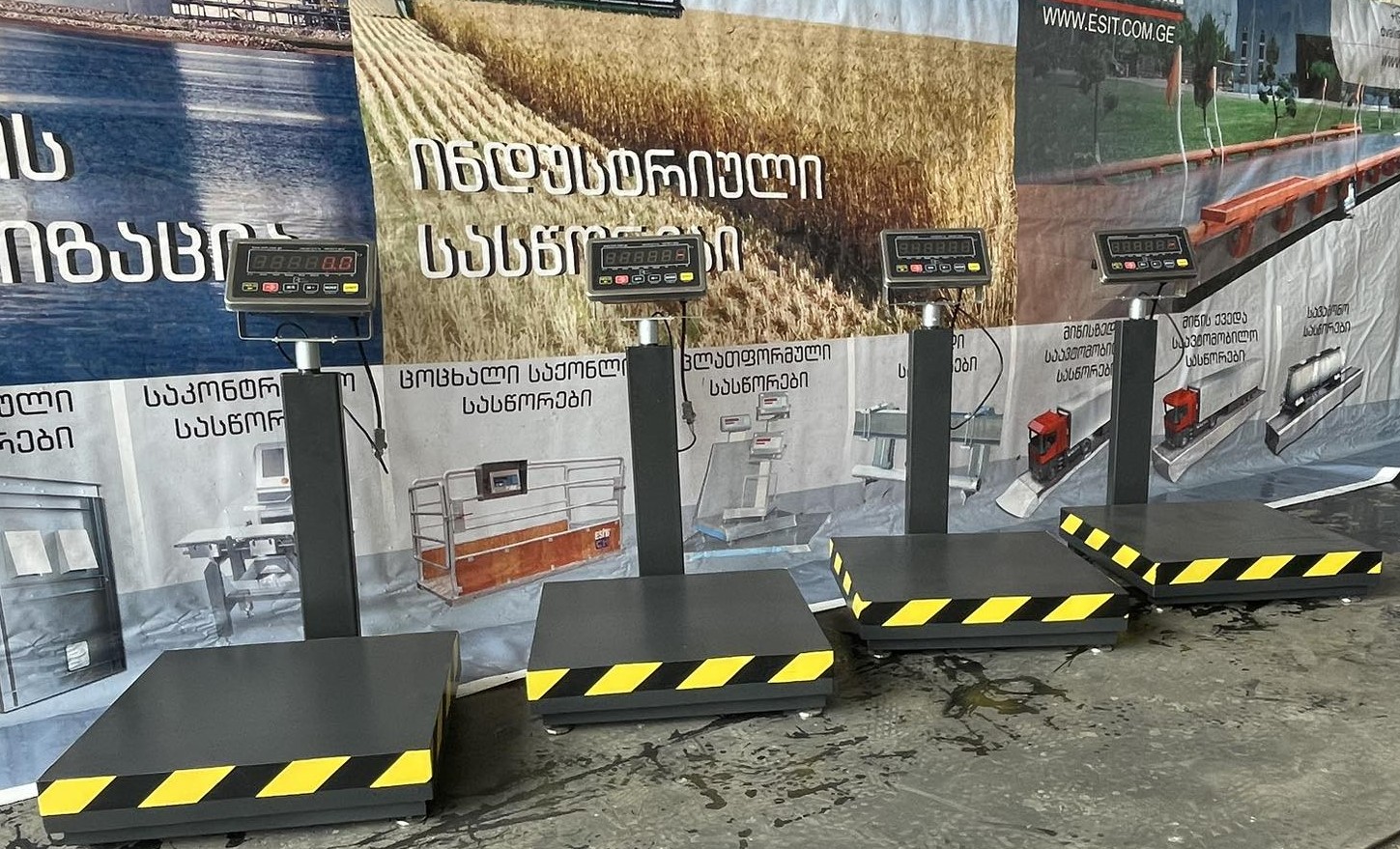

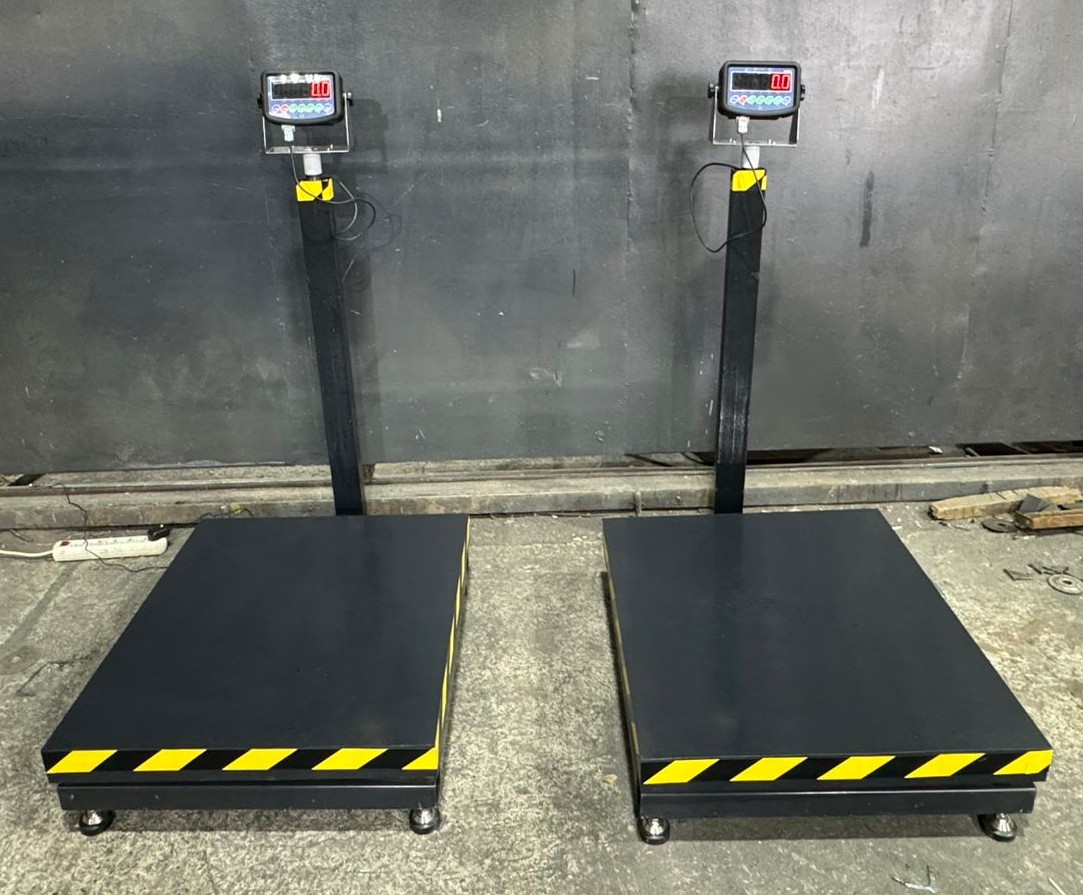

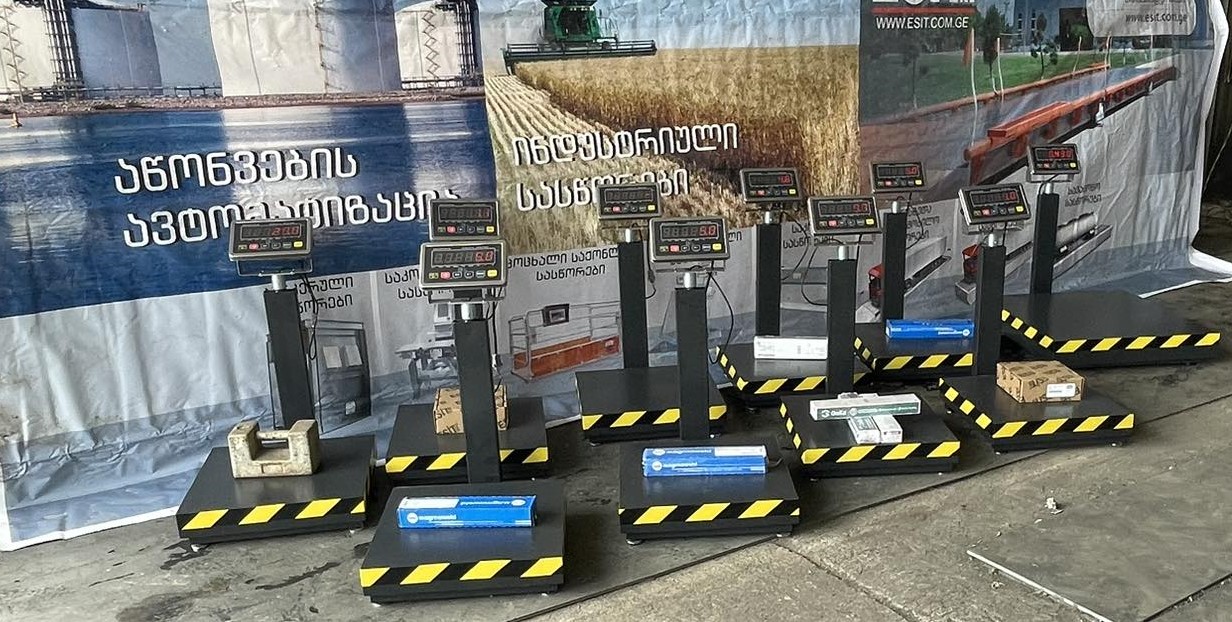

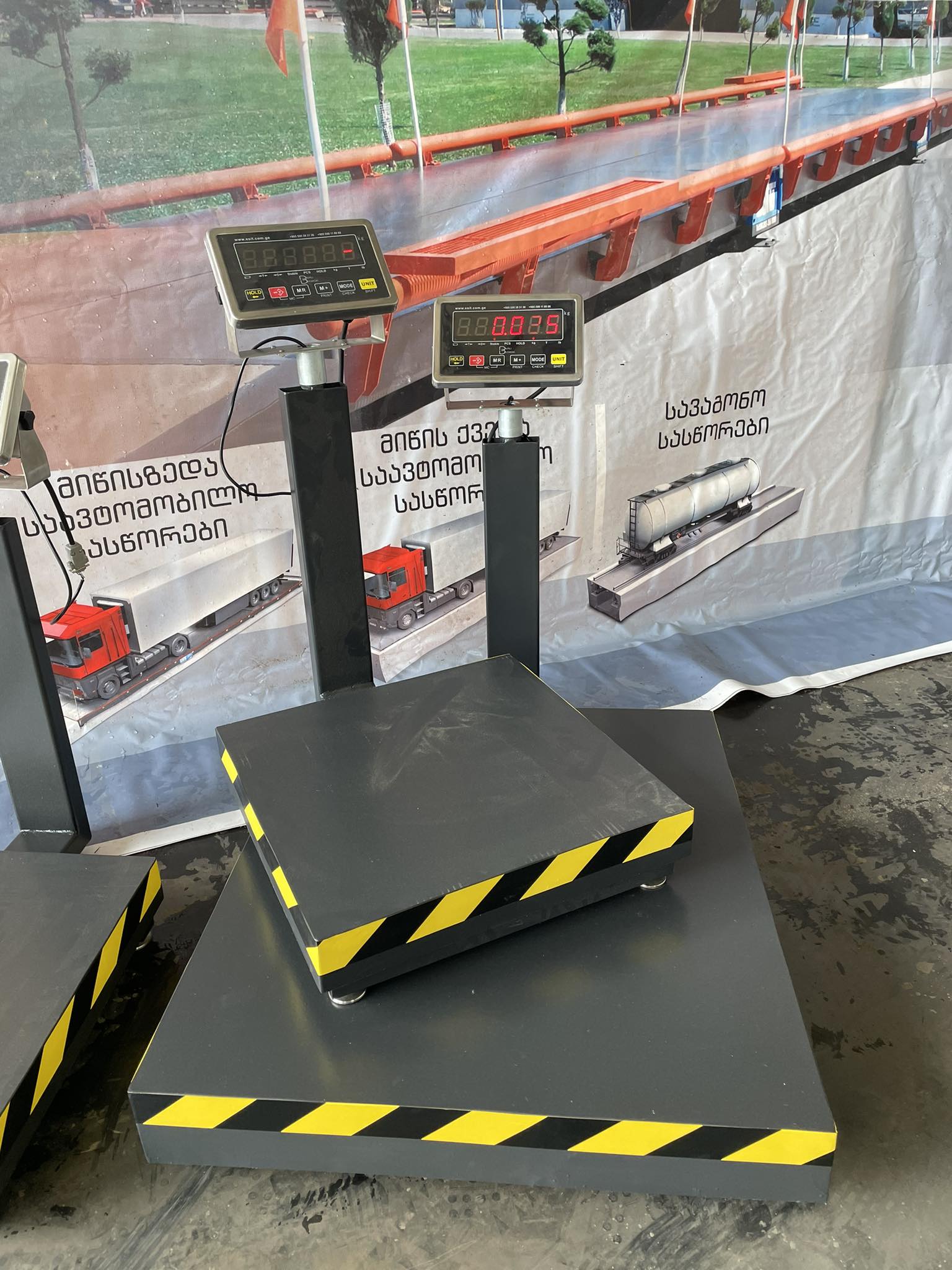

Gallery
Click any image to open a larger view.
Why this model works
A practical overview of where this version fits and why buyers choose it.
Where this model fits
This model is a practical fit for warehouse receiving, packaging support, internal logistics, and compact industrial weighing tasks where the 70 × 80 cm platform size and 600 kg capacity match the workflow.
- Warehouse receiving and internal movement
- Packaging and dispatch support
- Production-side weighing in compact spaces
- Daily internal logistics tasks
- Food, pharma, biotech, chemical, refinery, and hazardous-area projects according to requested configuration
Why buyers choose this format
Buyers choose this version for its compact footprint, 600 kg working range, IP68-protected platform system, standard overload protection, DVALI DS 318 indicator, and the ability to request stainless steel or extra functions depending on the project.
- 70 × 80 cm platform with 600 kg working range
- Single load cell system with IP68 platform protection
- Steel pan / steel frame standard version
- Optional stainless steel construction
- Optional interfaces, reporting, and request-based configurations
Indicator, documents, and options
The practical information a buyer usually needs before requesting a quotation.
Standard operating setup

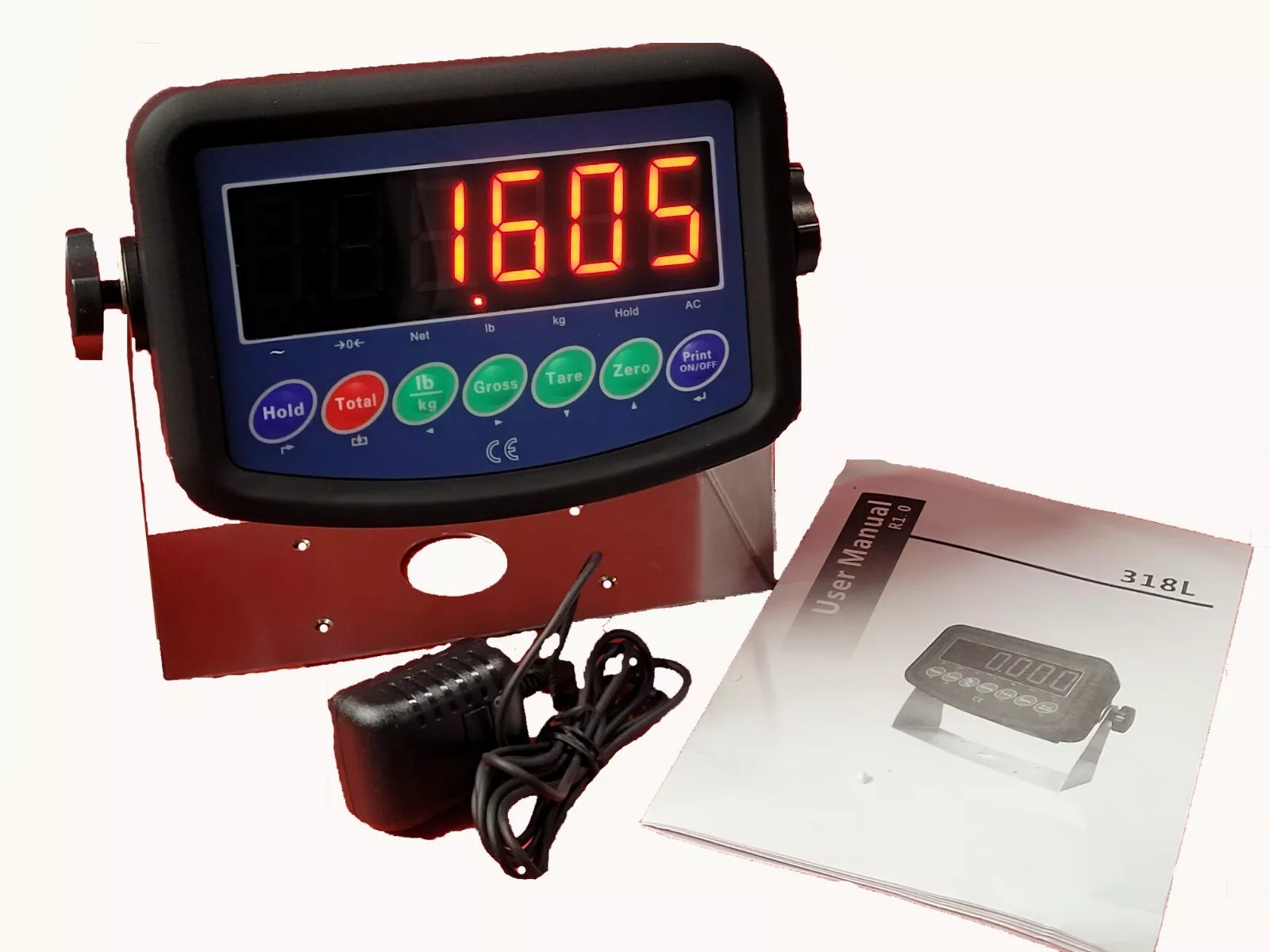

The standard indicator is DVALI DS 318 with IP54 protection. The model uses 220VAC - 50Hz power with a rechargeable 6V 4.5Ah battery.
Publicly confirmed support information
CE is mentioned for this model and the package includes a factory calibration certificate. The warranty period is 1 year.
Interfaces, functions, and request-based versions
RS232, Modbus, Ethernet, printer output, external display, Bluetooth, Wi-Fi, piece counting, pricing, and reporting are available as options. Legal-trade and Ex / hazardous-area configurations are available on request.
Standard configuration and support
The key confirmed items and support details for this exact model.
What defines this model
- 70 × 80 cm platform
- 600 kg maximum capacity
- Steel pan with steel frame
- Single load cell system
- IP68 platform protection
- DVALI DS 318 indicator
- Standard overload protection
Configuration path and documentation
- Stainless steel pan and frame option
- Remote display option
- Factory calibration certificate
- 1-year warranty
- Legal-trade configuration on request
- Ex / hazardous-area configuration on request
Frequently asked questions
Answers to common questions about configuration, documents, and available options.
What is the maximum capacity of this model?
The maximum capacity of this model is 600 kg.
What is the platform size?
The platform size is 70 × 80 cm.
What is the standard construction?
The standard version uses a steel pan and steel frame. Stainless steel pan and frame are available as an option.
Which indicator is supplied as standard?
The standard indicator is the DVALI DS 318 with IP54 protection.
Are extra interfaces and functions available?
Yes. RS232, Modbus, Ethernet, printer output, external display, Bluetooth, Wi-Fi, piece counting, pricing, and reporting are available as options.
Does this model include CE and calibration documentation?
Yes. CE is mentioned for this model and a factory calibration certificate is included.
