70 × 80 cm platform • 150 kg capacity
Platform size
70 × 80 cm
Capacity
150 kg
Load cell system
Single load cell
Protection
IP68

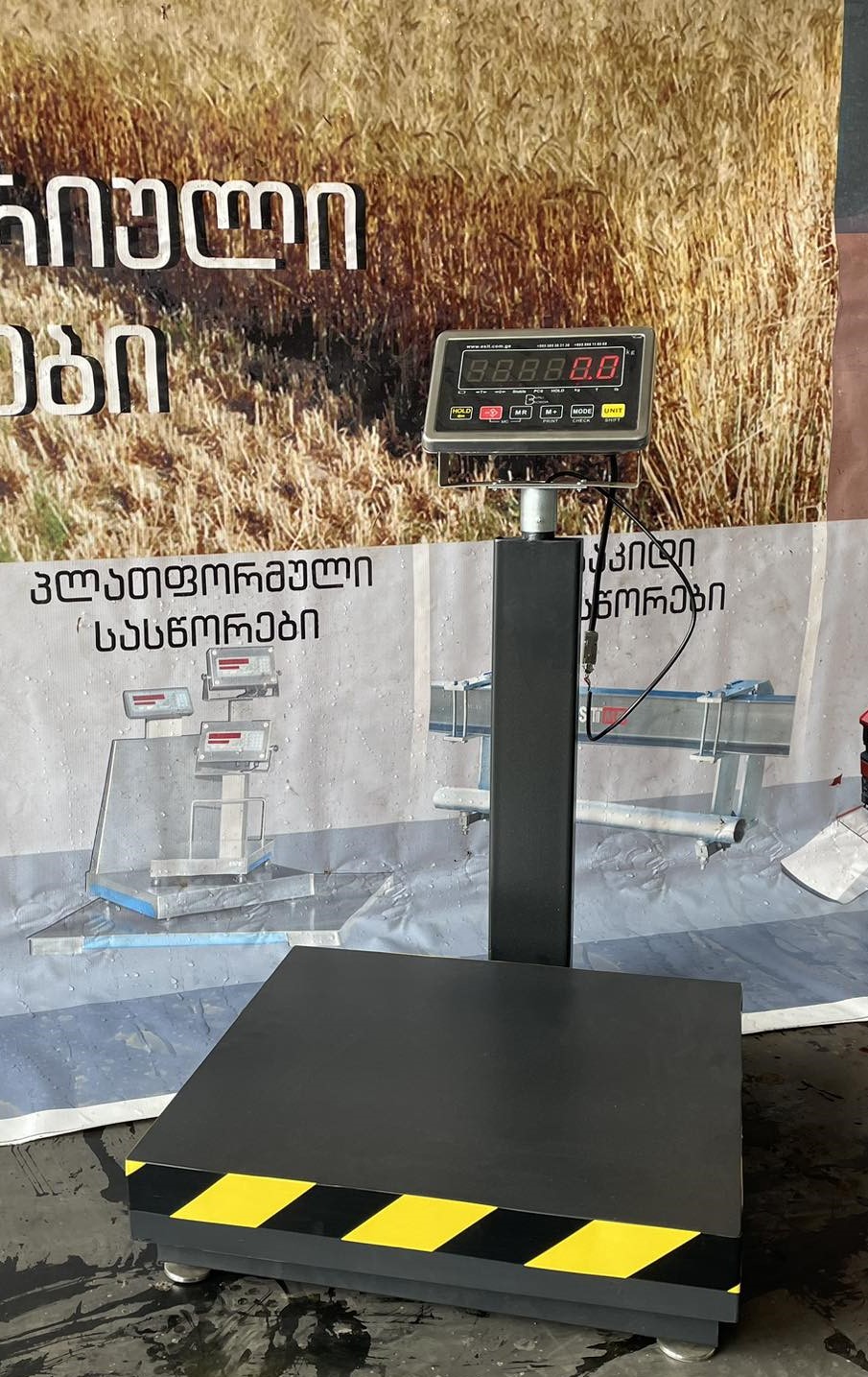

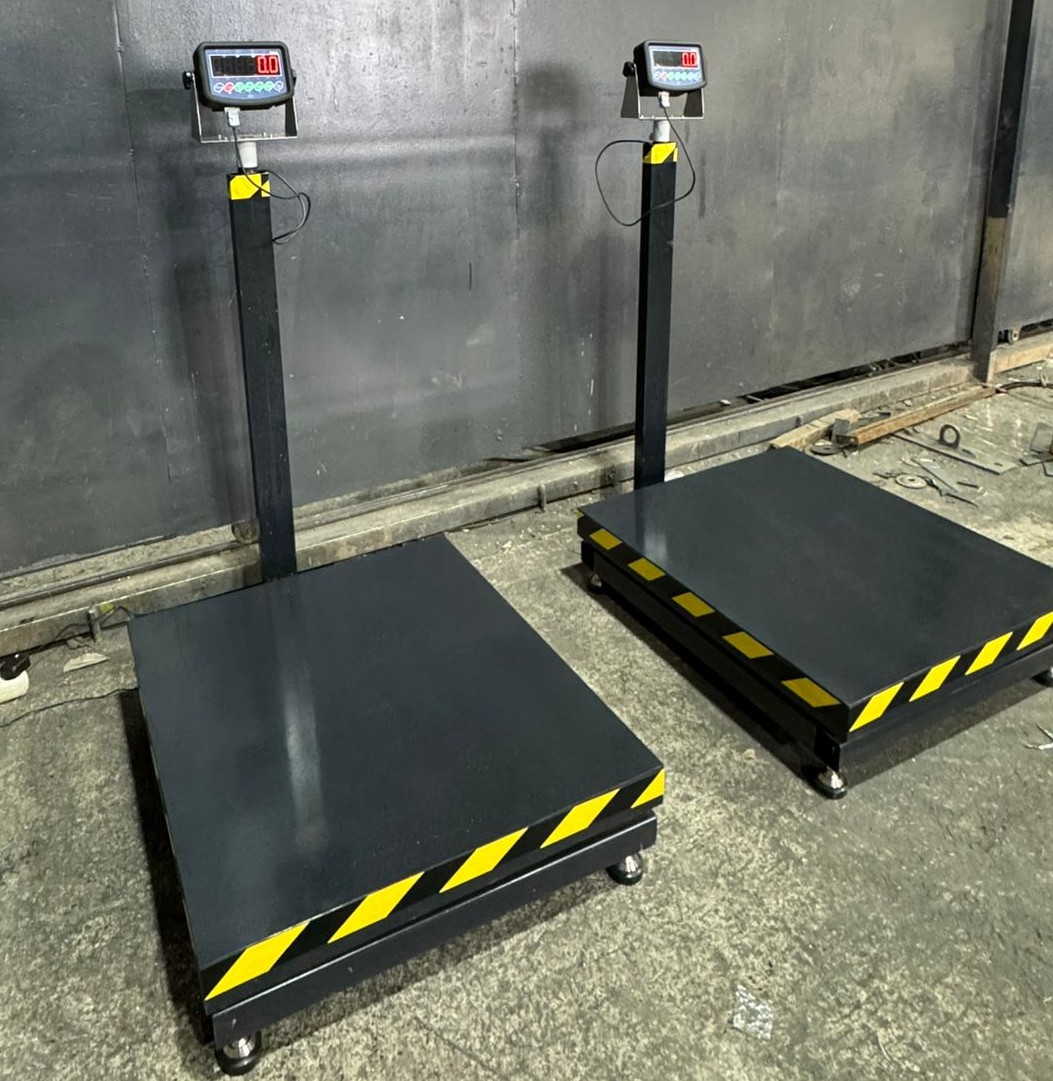

DVALI 150 kg Platform Scale – 70 × 80 cm
This 70 × 80 cm platform scale combines a 150 kg working range with the broadest platform area in this lighter-capacity group. It is suited to weighing tasks where the load does not require a higher weight range but does require more room on the platform for stable placement. The model includes CE, a single load cell system, IP68 platform protection, standard overload protection, 50 g display division, and the DVALI DS 318 indicator. The standard version uses a steel pan and steel frame, while stainless steel pan and frame are available as an option.
Technical specifications
Key specifications for the exact 70 × 80 cm / 150 kg model.
| Parameter | Value |
|---|---|
| Product type | Platform scale |
| Official product name | DVALI 150 kg Platform Scale – 70 × 80 cm |
| Platform size | 70 × 80 cm |
| Capacity | 150 kg |
| Standard construction | Steel pan, steel frame |
| Optional construction | Stainless steel pan and frame |
| Load cell system | Single load cell |
| Platform protection class | IP68 |
| Indicator | Standard DVALI DS 318 indicator |
| Indicator protection class | IP54 |
| Display division | 50 g |
| Standard communication output | None |
| Optional interfaces / outputs | RS232 / Modbus / Ethernet / printer output / external display / Bluetooth / Wi-Fi |
| Optional functions | Piece counting / pricing / reporting |
| Legal-trade configuration | Available on request |
| Ex / hazardous-area configuration | Available on request |
| Overload protection | Included in standard configuration |
| Approval | CE |
| Calibration documentation | Factory calibration certificate |
| Operating temperature | -10°C...+40°C |
| Power supply | 220VAC - 50Hz with rechargeable battery 6V 4.5Ah |
| Accessory | Remote display as option |
| Warranty | 1 year |
| Typical application areas | Warehouses, goods receiving, packaging, internal logistics, and request-based food, pharma, biotech, chemical, refinery, and hazardous-area projects according to configuration |
This exact 70 × 80 cm / 150 kg model is a practical choice when the load needs more platform
surface than the smaller 40 × 50 cm or 60 × 60 cm versions, while the 150 kg working range
remains sufficient for the task.

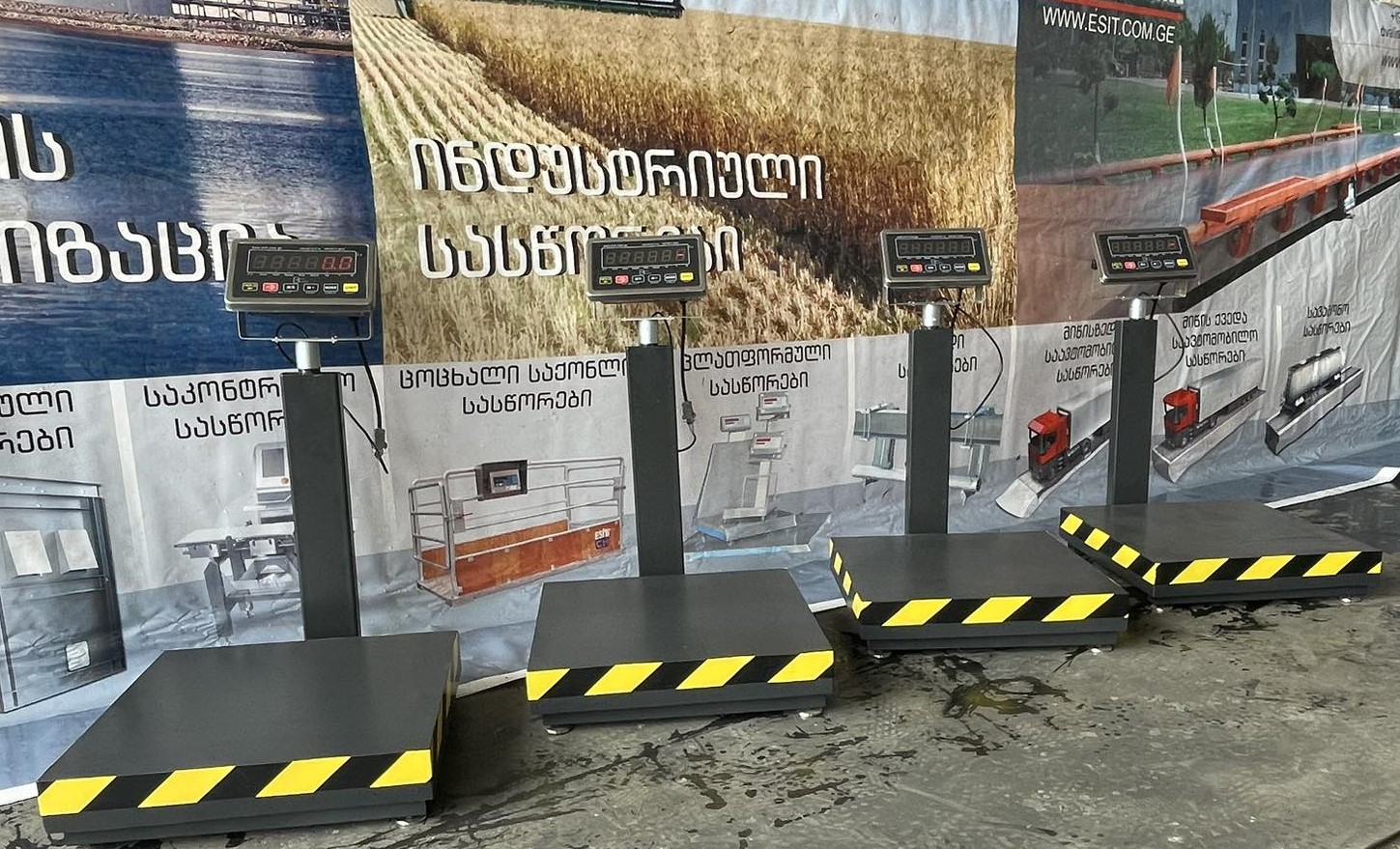

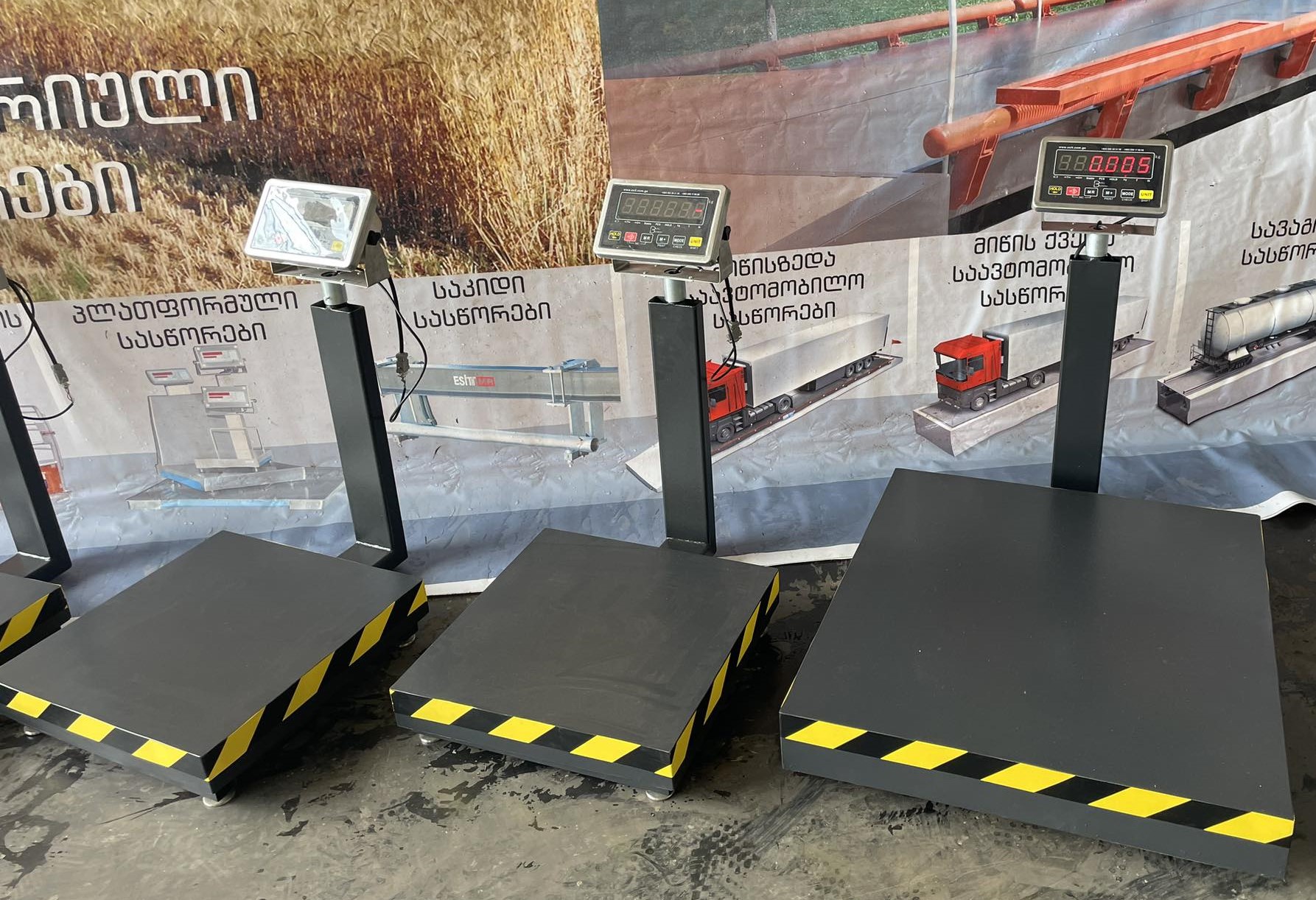

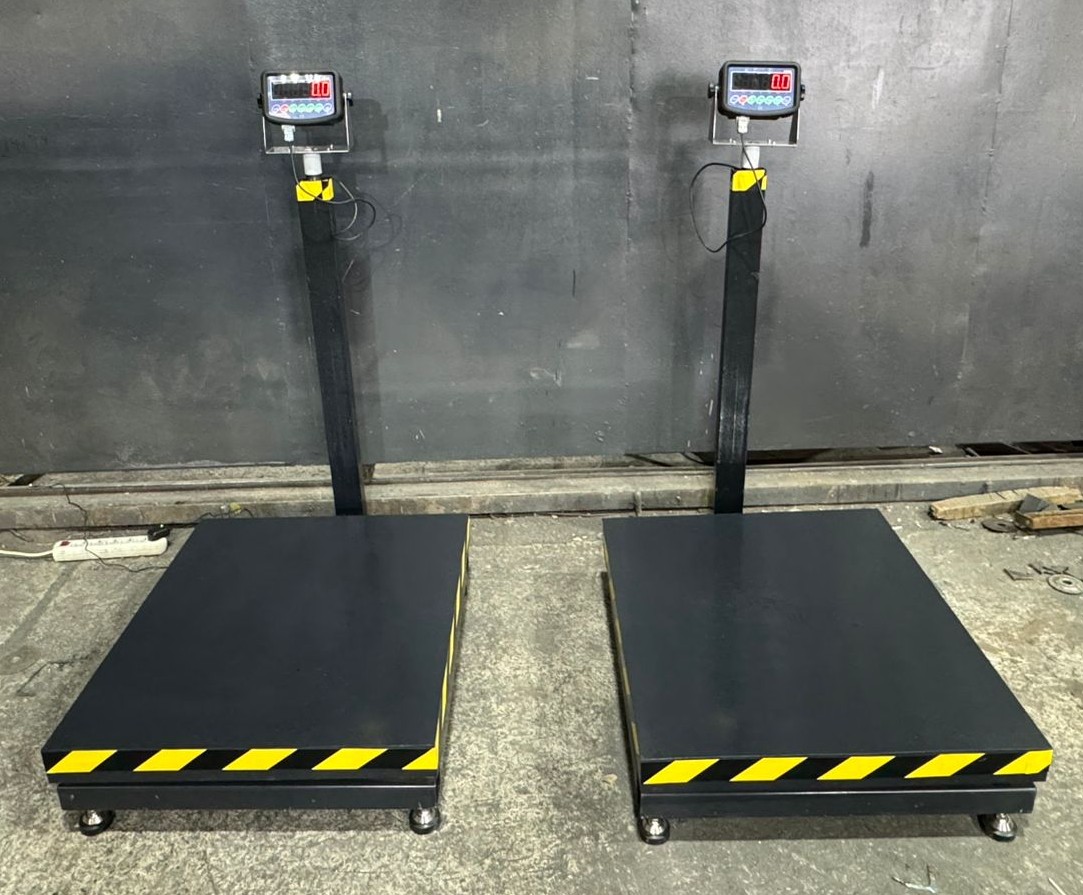

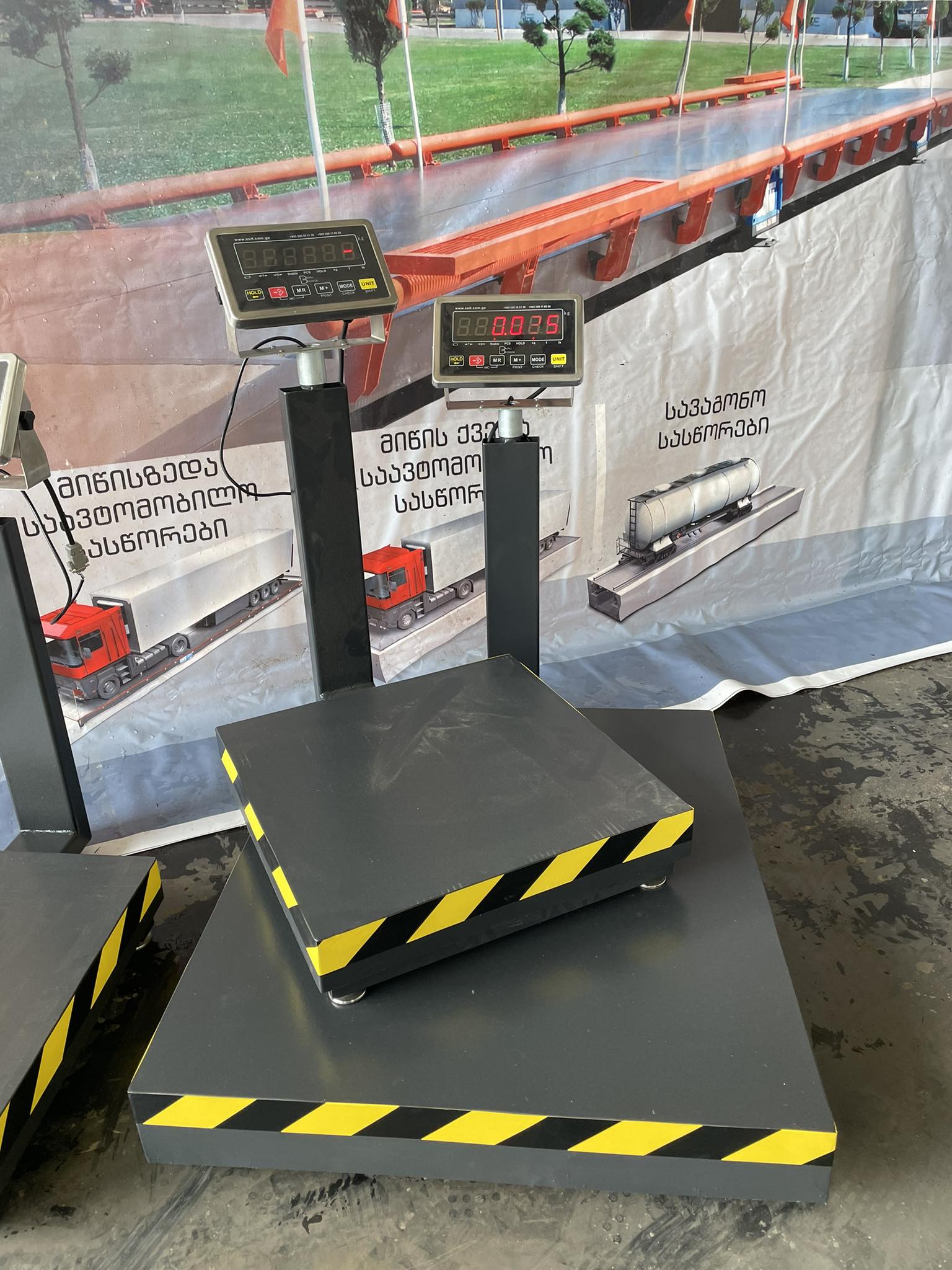

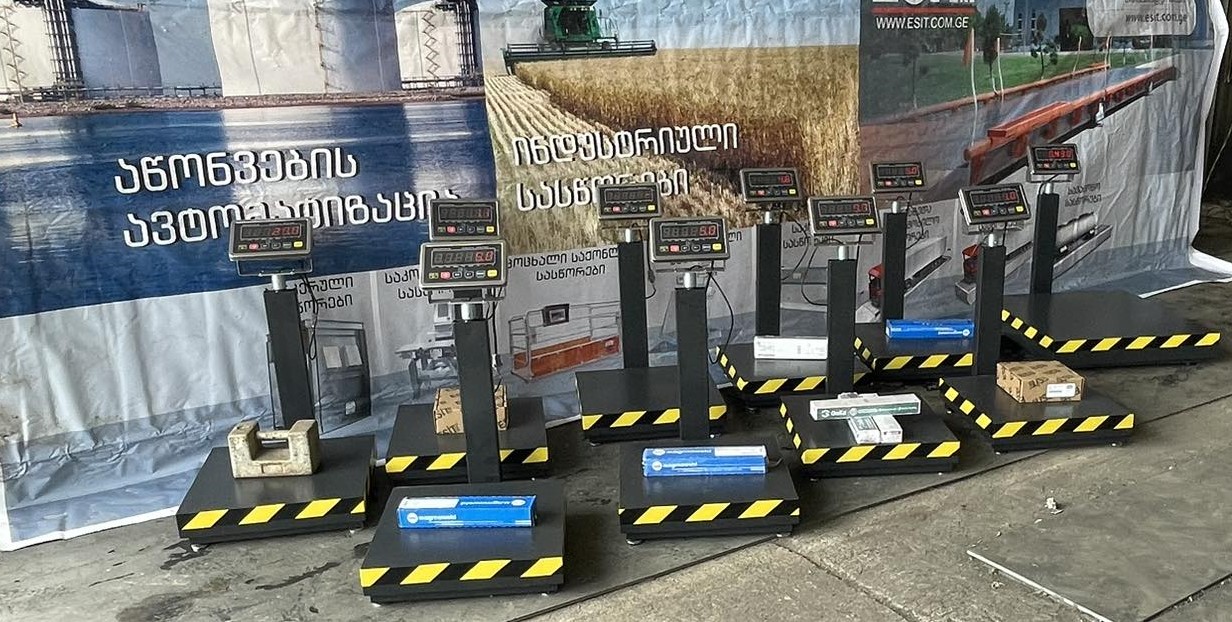

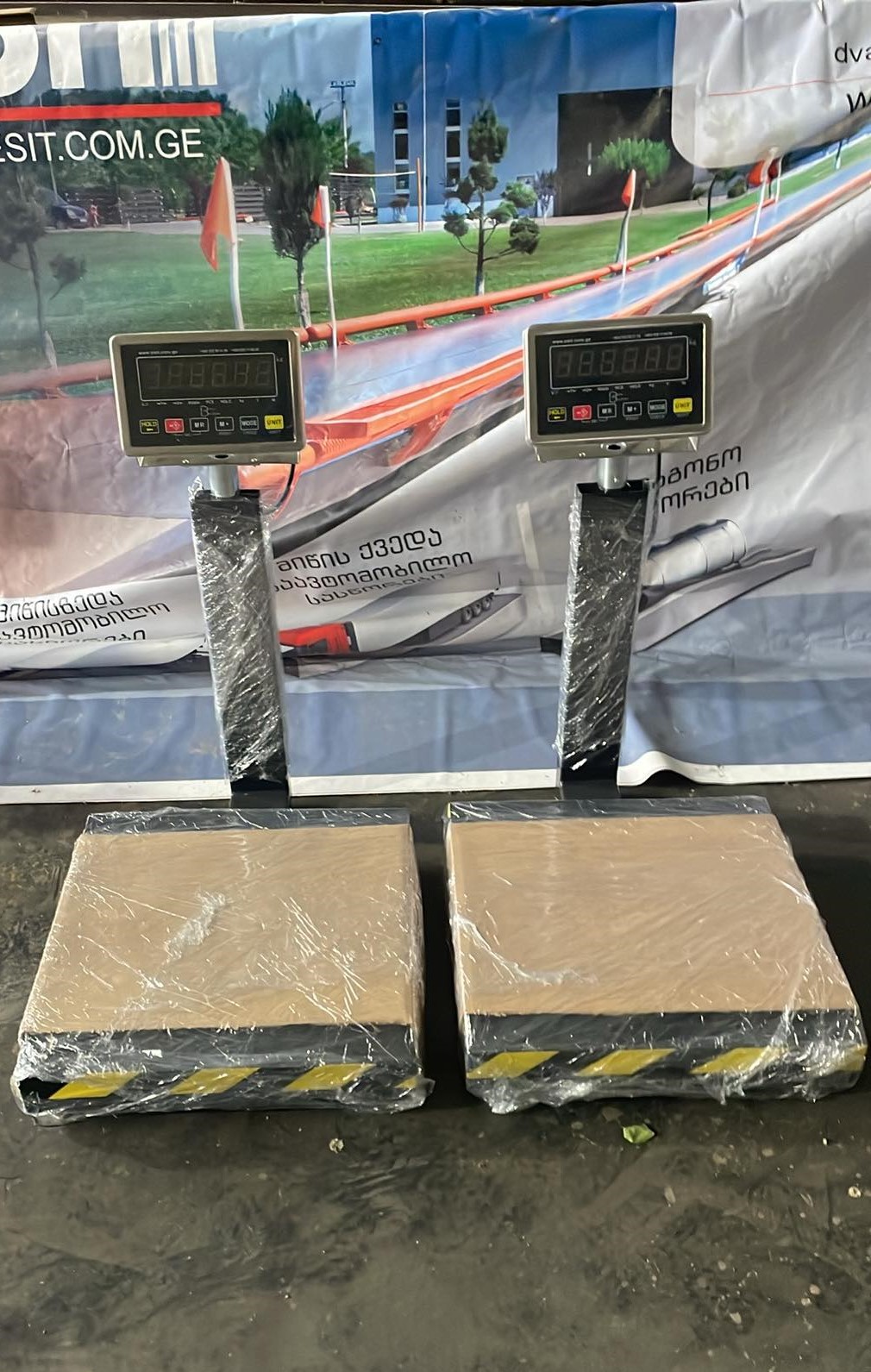

Gallery
Click any image to open a larger view.
Why this model works
A practical overview of where this version fits and why buyers choose it.
Where this model fits
This model is a practical fit for warehouse receiving, packaging support, internal logistics, and production-side weighing where the load needs more room on the platform but the 150 kg capacity remains sufficient. The 70 × 80 cm format is useful when the item footprint is larger than what smaller platform versions comfortably support.
- Warehouse receiving and internal movement
- Packaging and dispatch support for wider items
- Production-side weighing where a larger platform area is helpful
- Daily internal logistics tasks with bulkier load footprints
- Food, pharma, biotech, chemical, refinery, and hazardous-area projects according to requested configuration
Why buyers choose this format
Buyers choose this version when they need the 150 kg working range together with the broadest platform area in this lighter-capacity group. It offers more load placement space, IP68 platform protection, standard overload protection, the DVALI DS 318 indicator, and the option to request stainless steel construction or extra functions depending on the project.
- 70 × 80 cm platform with 150 kg working range
- More platform area for wider or bulkier items
- Single load cell system with IP68 platform protection
- Steel pan / steel frame standard version
- Optional stainless steel construction and optional interfaces
Indicator, documents, and options
The practical information a buyer usually needs before requesting a quotation.
Standard operating setup

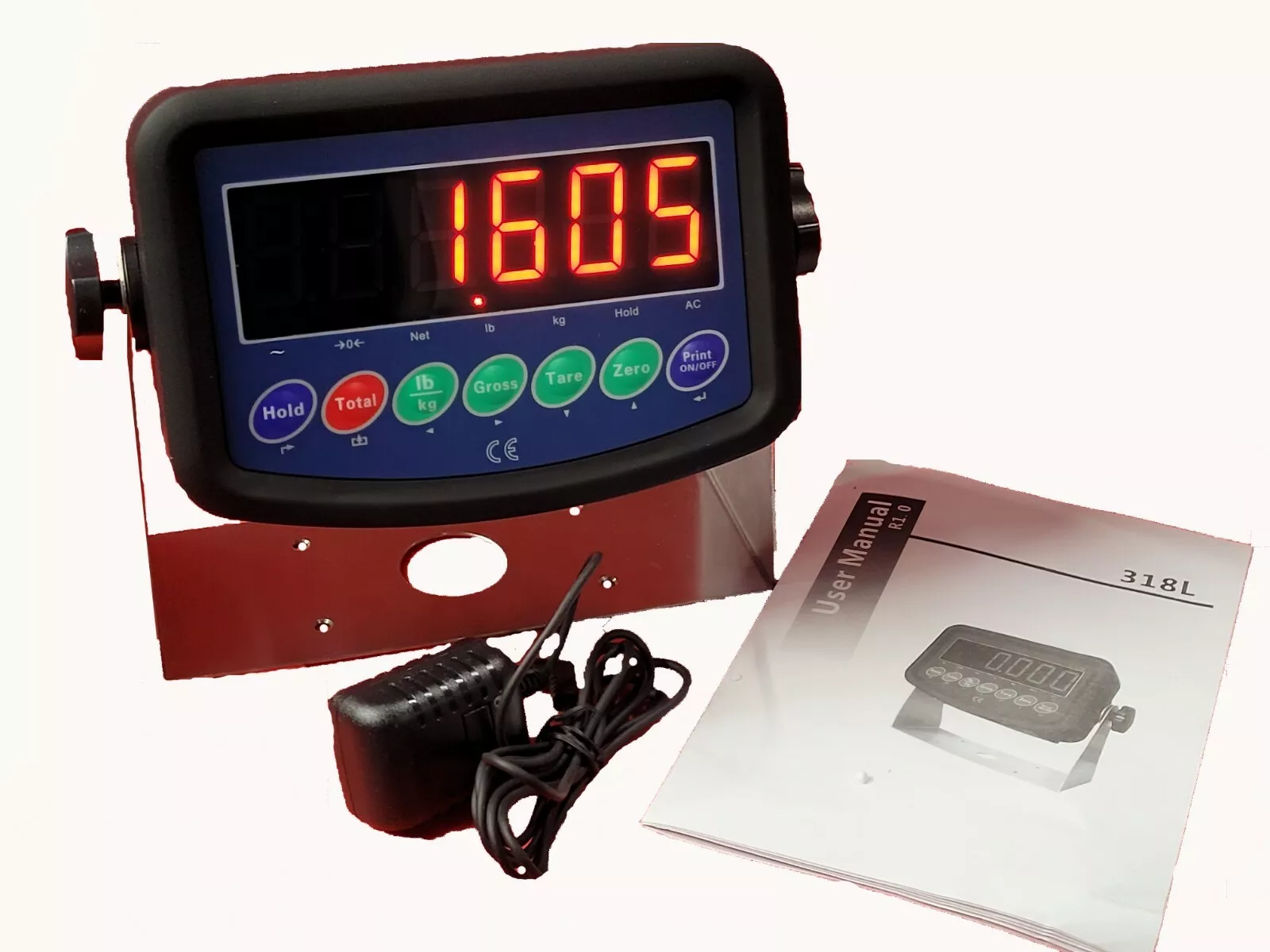

The standard indicator is DVALI DS 318 with IP54 protection. The model uses 220VAC - 50Hz power with a rechargeable 6V 4.5Ah battery.
Publicly confirmed support information
CE is mentioned for this model and the package includes a factory calibration certificate. The warranty period is 1 year.
Interfaces, functions, and request-based versions
RS232, Modbus, Ethernet, printer output, external display, Bluetooth, Wi-Fi, piece counting, pricing, and reporting are available as options. Legal-trade and Ex / hazardous-area configurations are available on request.
Standard configuration and support
The key confirmed items and support details for this exact model.
What defines this model
- 70 × 80 cm platform
- 150 kg maximum capacity
- Steel pan with steel frame
- Single load cell system
- IP68 platform protection
- DVALI DS 318 indicator
- Standard overload protection
Configuration path and documentation
- Stainless steel pan and frame option
- Remote display option
- Factory calibration certificate
- 1-year warranty
- Legal-trade configuration on request
- Ex / hazardous-area configuration on request
Frequently asked questions
Answers to common questions about configuration, documents, and available options.
What is the maximum capacity of this model?
The maximum capacity of this model is 150 kg.
What is the platform size?
The platform size is 70 × 80 cm.
What is the standard construction?
The standard version uses a steel pan and steel frame. Stainless steel pan and frame are available as an option.
Which indicator is supplied as standard?
This 150 kg / 70 × 80 cm version is supplied as standard with the DVALI DS 318 indicator and IP54 protection.
Are extra interfaces and functions available?
Yes. Optional interfaces and functions can include RS232, Modbus, Ethernet, printer output, external display, Bluetooth, Wi-Fi, piece counting, pricing, and reporting.
Does this model include CE and calibration documentation?
Yes. CE is mentioned for this model, and the package includes a factory calibration certificate.
Next step
Need this exact 70 × 80 cm / 150 kg model?
Contact DVALI Scale for pricing, configuration guidance, and support for this platform scale when you need a larger 70 × 80 cm platform area while the 150 kg working range remains sufficient.
