80 ton entry model in the DVALI Super Heavy range
80 Ton DVALI Super Heavy Truck Scale
The 80 Ton DVALI Super Heavy Truck Scale is the entry model in the DVALI Super Heavy truck scale family. It is intended for projects that need a heavy-duty truck scale with a lower capacity than the 100 ton and 120 ton versions. This exact 80 ton configuration combines an ultra-durable steel platform, heavy-duty I-beam structure, 10-load-cell configuration, CD 30 load cells, J10 junction box, PWI-D indicator, CD-RM rocker mounting kit, pitless installation, and a 5-year warranty.
Available in 3 × 16 m, 3 × 18 m, and 3 × 20 m platform dimensions.
- 80 ton capacity
- Entry model in the Super Heavy family
- Ultra-durable steel platform
- Heavy-duty I-beam structure
- CD 30 load cells
- 10-load-cell configuration
- J10 junction box
- PWI-D indicator
- CD-RM rocker mounting kit
- 5-year warranty
Overview
80 ton model for projects below the 100 ton and 120 ton options
The 80 Ton DVALI Super Heavy Truck Scale is positioned as the lower-capacity option in the DVALI Super Heavy truck scale range. It is intended for projects that need a heavy-duty truck scale with less reserve than the 100 ton and 120 ton models while still using the same Super Heavy family direction. The model is available in 3 × 16 m, 3 × 18 m, and 3 × 20 m platform lengths.
This 80 ton configuration combines a steel platform with heavy-duty I-beam construction and pitless installation. The system package is built around CD 30 load cells, J10 junction box, PWI-D indicator, and CD-RM rocker mounting kit, making the page clearly focused on the exact 80 ton model rather than the whole Super Heavy series.
System highlights
Platform, load cells, indicator, and mounting kit
The main structural and system elements used on the 80 ton DVALI Super Heavy truck scale.
Platform and structure
The 80 ton model uses an ultra-durable steel platform with heavy-duty I-beam construction. This construction direction is intended for projects that need a lower-capacity option in the Super Heavy family while still using the same reinforced platform concept.
- Steel platform
- Ultra-durable platform design
- Heavy-duty I-beam structure
- 3 × 16 m, 3 × 18 m, and 3 × 20 m models
- Pitless installation
CD 30 load cells
This model uses a 10-load-cell configuration built around CD 30 load cells. CD 30 is presented as a compression-type, column-style load cell for high-capacity weighing, with stainless steel body construction and welded sealed protection.
In the listed CD range, CD 30 is shown with 30,000 kg capacity, 3400 g minimum division, 45,000 kg overload capacity, C3 / C4 accuracy class, and IP68 protection class.
- 10-load-cell configuration
- Load cell model: CD 30
- Capacity: 30,000 kg
- Minimum division: 3400 g
- Overload capacity: 45,000 kg
- Accuracy class: C3 / C4
- Material: stainless steel
- Protection class: IP68
- Junction box: J10
See component details: CD truck scale load cell.
PWI-D indicator
The 80 ton Super Heavy model uses the PWI-D desktop indicator for the main weighing functions of the system. In the listed component details, PWI-D includes 7000d (III) accuracy class, RS232 communication, adjustable Modbus protocol, and plastic IP54 housing.
- Accuracy class: 7000d (III)
- Input sensitivity: 0.5 μV/digit
- RS232 communication
- Adjustable Modbus protocol
- Housing: plastic, IP54
- Power supply: 12-24V AC / 12-36V DC, 5W
See component details: PWI-D indicator.
CD-RM rocker mounting kit
This 80 ton model uses the CD-RM rocker mounting kit to help protect the load cell system from lateral forces. It is suitable for installations where expansion and vibration conditions can influence weighing behavior.
- Rocker mounting kit design
- Helps protect load cells from lateral forces
- Suitable for lateral expansion conditions
- Suitable for vibration-sensitive installations
- Used with the CD load cell family
See component details: CD-RM rocker mounting kit.
Model matrix
Available 80 ton models
Review the listed 80 ton platform-length options below before requesting the exact configuration.
| Capacity | Model name | Model code | Minimum capacity | Division | Platform dimensions | Platform | Datasheet |
|---|---|---|---|---|---|---|---|
| 80T | DVALI Super Heavy Truck Scale 80 Ton - 3 × 16 m | 080T-SH-0316 | 1000 kg | 50 kg | 3 × 16 m | Steel | Request 3 × 16 m datasheet |
| 80T | DVALI Super Heavy Truck Scale 80 Ton - 3 × 18 m | 080T-SH-0318 | 1000 kg | 50 kg | 3 × 18 m | Steel | Request 3 × 18 m datasheet |
| 80T | DVALI Super Heavy Truck Scale 80 Ton - 3 × 20 m | 080T-SH-0320 | 1000 kg | 50 kg | 3 × 20 m | Steel | Request 3 × 20 m datasheet |

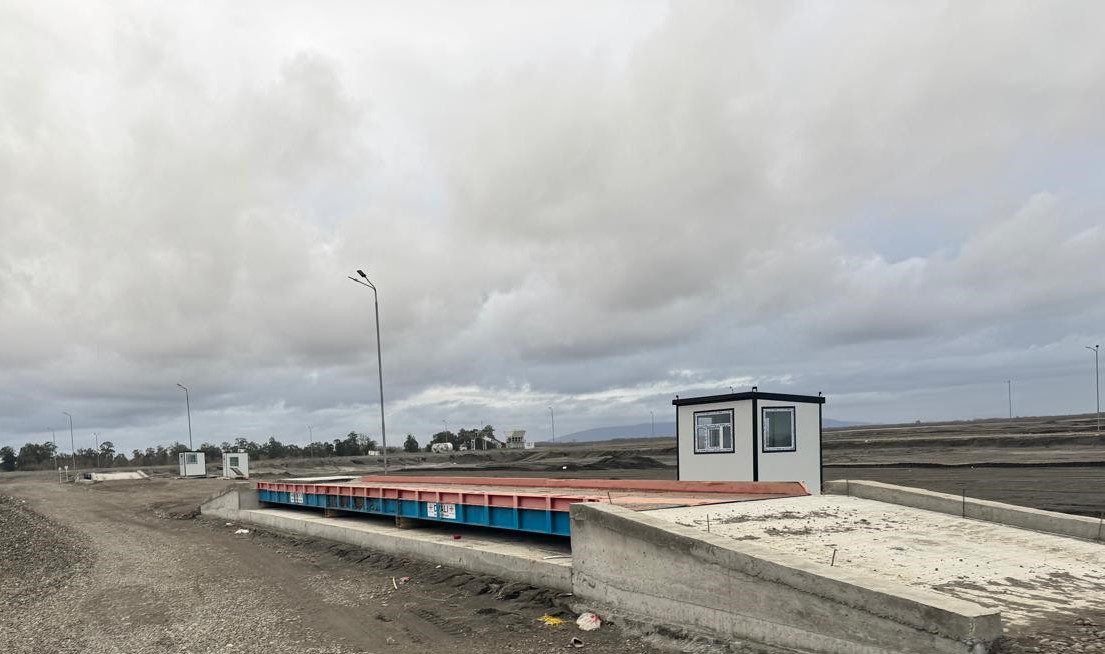

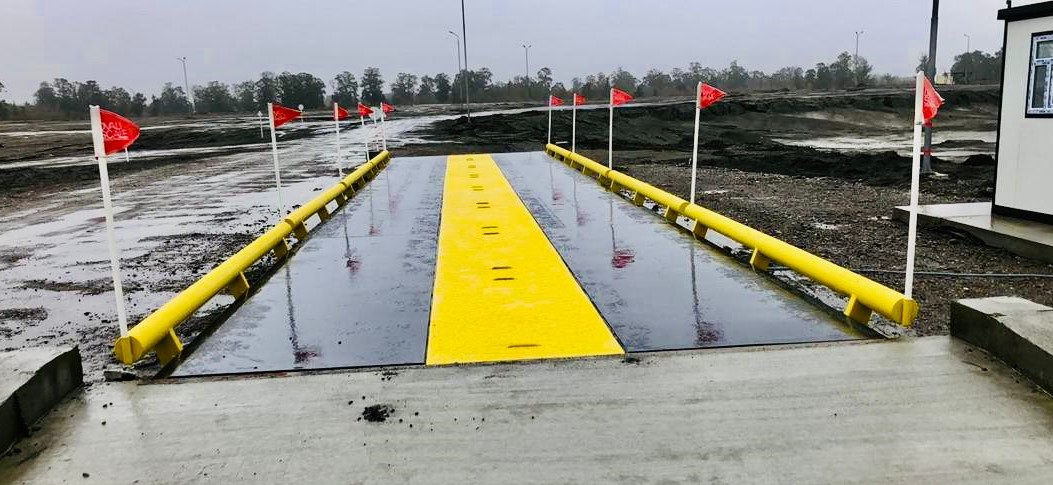

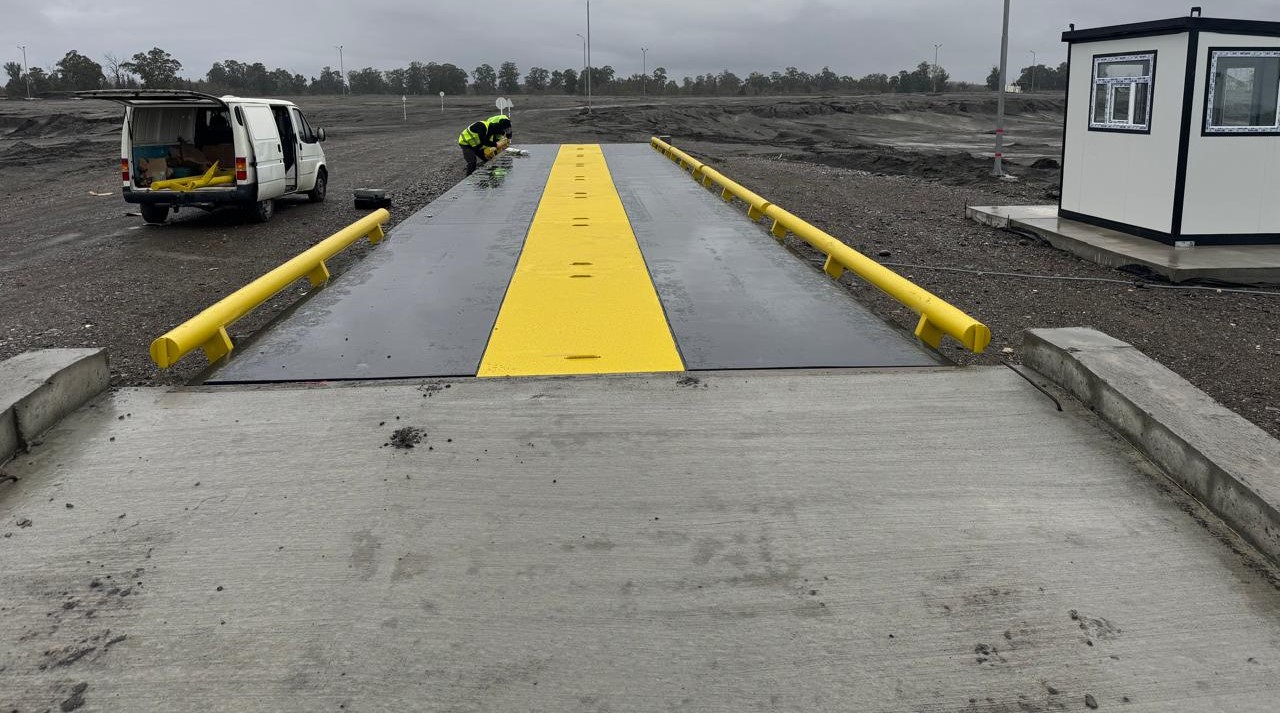

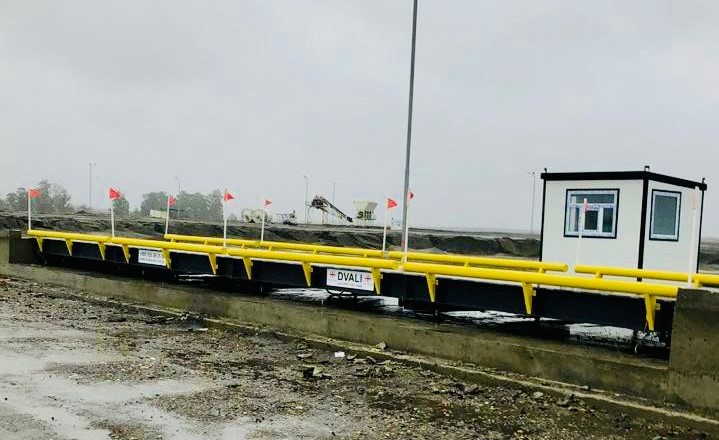

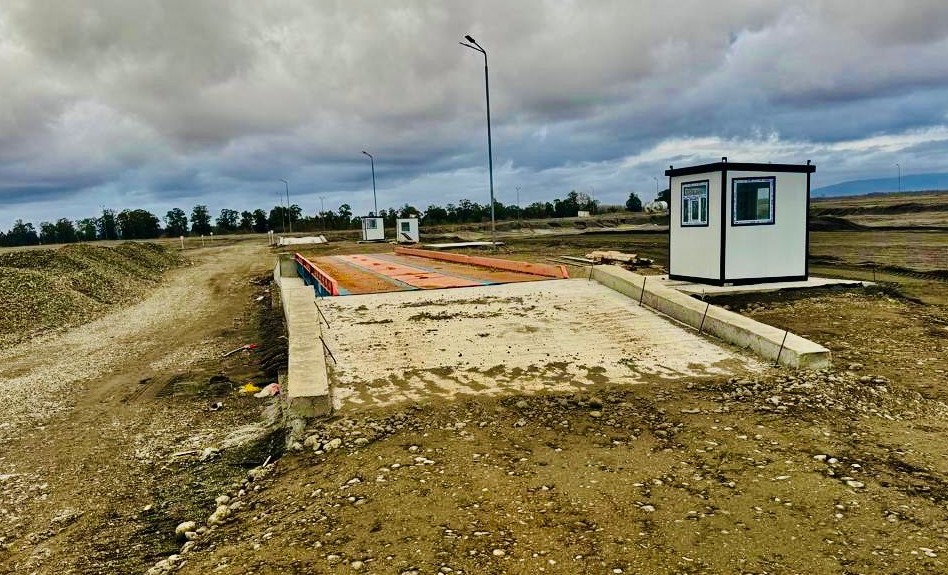

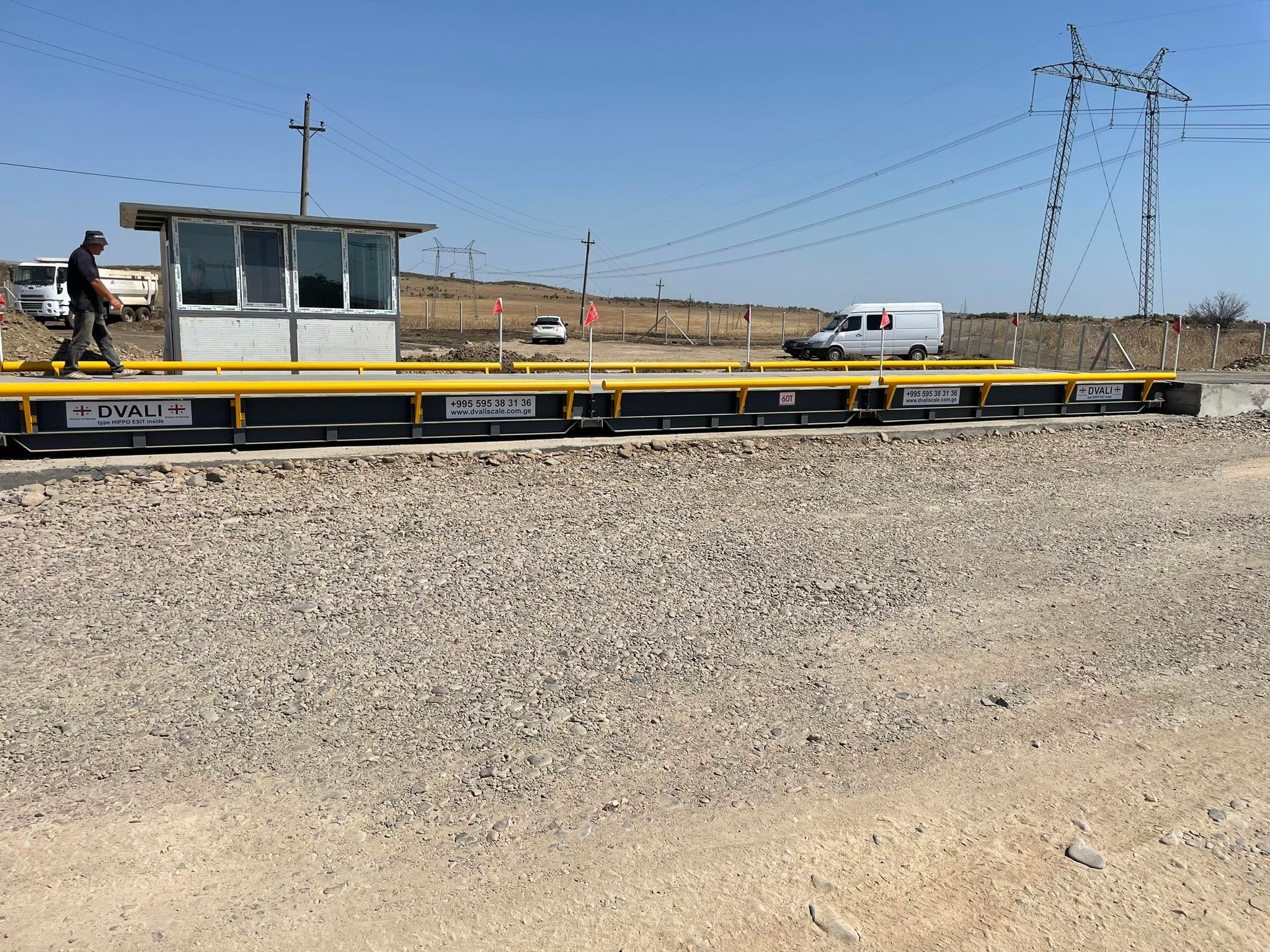

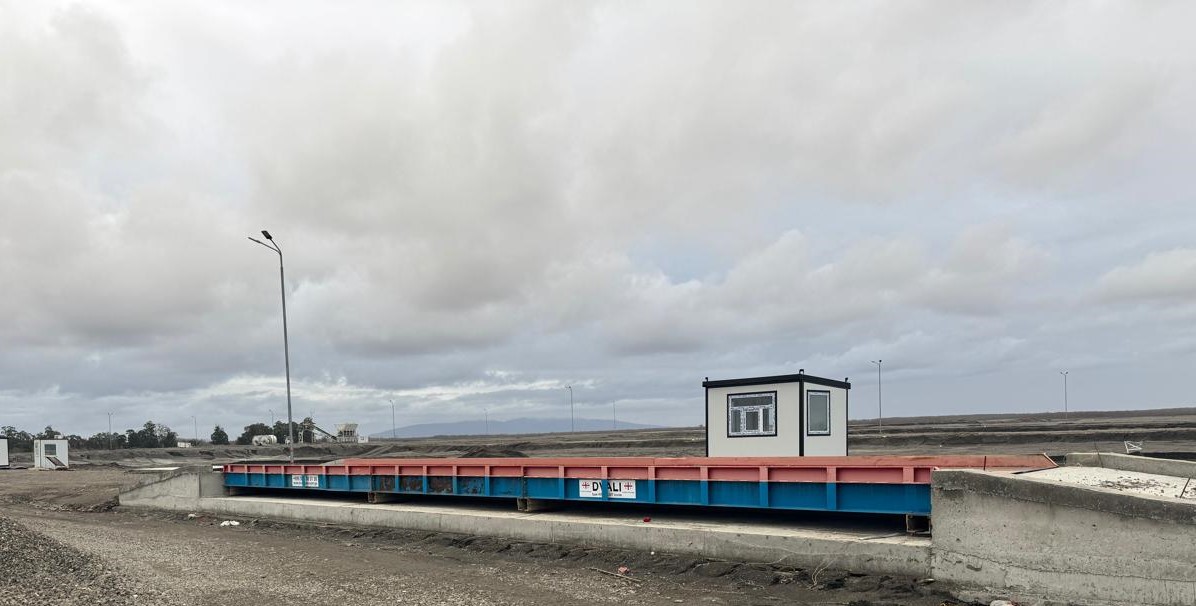

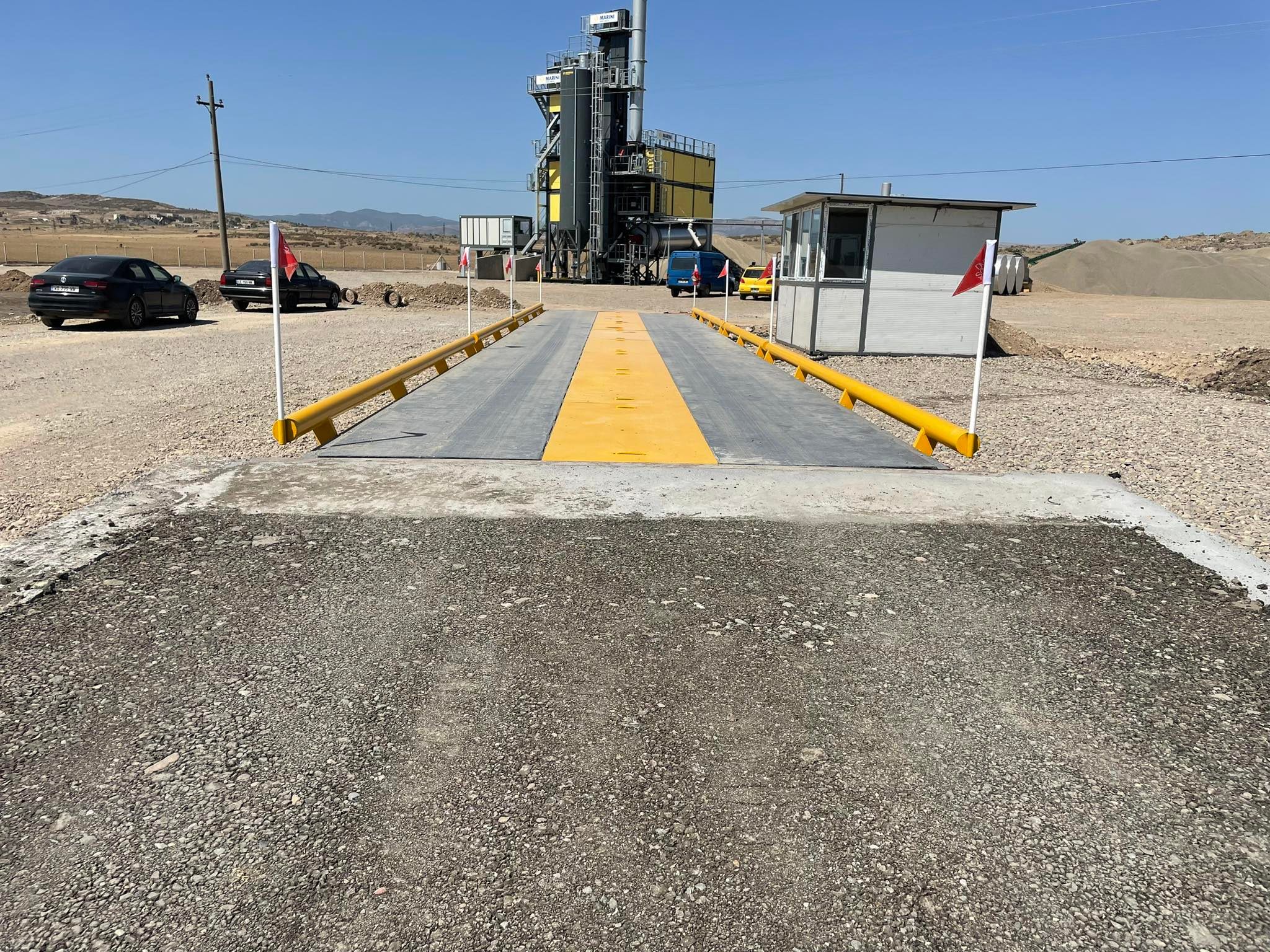

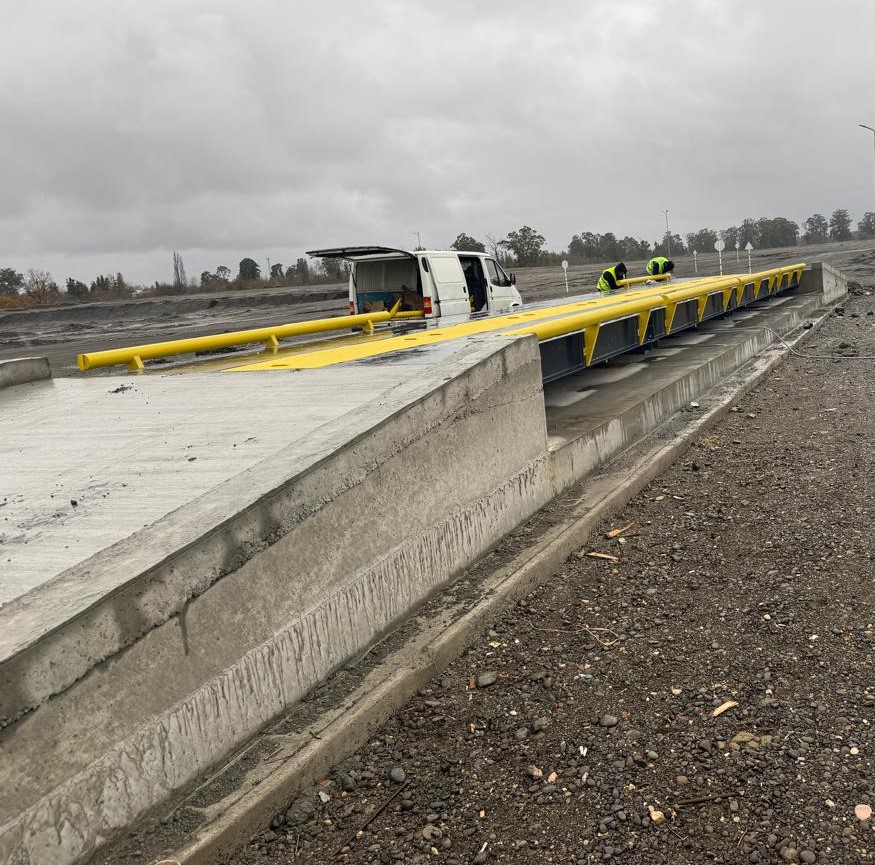

Gallery
Product, structure, and installation images
Visual references for the exact 80 ton DVALI Super Heavy model page.
FAQ
Frequently asked questions
Which platform dimensions are available for the 80 ton DVALI Super Heavy truck scale?
The 80 ton version is listed in 3 × 16 m, 3 × 18 m, and 3 × 20 m platform dimensions.
Which load cell configuration is used on this model?
This configuration uses 10 CD 30 load cells together with a J10 junction box.
Which indicator is used on this model?
The indicator used for this exact 80 ton truck scale is PWI-D.
Which mounting kit is used with this model?
The model is configured with the CD-RM rocker mounting kit.
What installation type is used?
This 80 ton Super Heavy truck scale is designed for pitless installation.
What warranty is offered?
The stated warranty period for this model is 5 years.
Request a quote
Request your 80 ton Super Heavy configuration
Send your required platform dimension, site details, and project needs. DVALI Scale can help you review whether this exact 80 ton configuration is the right fit for your operation.
