Highest-capacity model in the DVALI Super Heavy range
120 Ton DVALI Super Heavy Truck Scale
The 120 Ton DVALI Super Heavy Truck Scale is the highest-capacity model in the DVALI Super Heavy truck scale family. It is intended for projects that need the strongest capacity position in this range, above the 80 ton and 100 ton versions. This exact 120 ton configuration combines an ultra-durable steel platform, heavy-duty I-beam structure, 10-load-cell layout, CD 30 load cells, J10 junction box, PWI-D indicator, CD-RM rocker mounting kit, pitless installation, and a 5-year warranty.
Available in 3 × 16 m, 3 × 18 m, and 3 × 20 m platform dimensions.
- 120 ton capacity
- Highest-capacity model in the Super Heavy family
- Ultra-durable steel platform
- Heavy-duty I-beam structure
- CD 30 load cells
- 10-load-cell configuration
- J10 junction box
- PWI-D indicator
- CD-RM rocker mounting kit
- 5-year warranty
Overview
120 ton model for projects above the 80 ton and 100 ton options
The 120 Ton DVALI Super Heavy Truck Scale is positioned as the highest-capacity option in the DVALI Super Heavy truck scale range. It is intended for projects that need more reserve than the 80 ton and 100 ton models while staying within the same Super Heavy family. The model is offered in 3 × 16 m, 3 × 18 m, and 3 × 20 m platform lengths.
This 120 ton configuration combines a steel platform with heavy-duty I-beam construction and pitless installation. The system package is built around CD 30 load cells, J10 junction box, PWI-D indicator, and CD-RM rocker mounting kit, making the page clearly focused on the exact 120 ton model rather than the whole series.
System highlights
Platform, load cells, indicator, and mounting kit
The main structural and system elements used on the 120 ton DVALI Super Heavy truck scale.
Platform and structure
The 120 ton version uses an ultra-durable steel platform supported by a heavy-duty I-beam structure. This construction direction is intended for projects that need the highest-capacity truck scale in the Super Heavy family while keeping the same reinforced platform concept used across the range.
- Steel platform
- Ultra-durable platform design
- Heavy-duty I-beam structure
- 3 × 16 m, 3 × 18 m, and 3 × 20 m models
- Pitless installation
CD 30 load cells
The weighing system on this model is based on a 10-load-cell configuration using CD 30 load cells. CD 30 is presented as a compression-type, column-style load cell for high-capacity weighing applications, with stainless steel body construction and welded sealed protection.
In the listed CD range, CD 30 is shown with 30,000 kg capacity, 3400 g minimum division, 45,000 kg overload capacity, C3 / C4 accuracy class, and IP68 protection class.
- 10-load-cell configuration
- Load cell model: CD 30
- Capacity: 30,000 kg
- Minimum division: 3400 g
- Overload capacity: 45,000 kg
- Accuracy class: C3 / C4
- Material: stainless steel
- Protection class: IP68
- Junction box: J10
See component details: CD truck scale load cell.
PWI-D indicator
The 120 ton Super Heavy model uses the PWI-D desktop indicator for the main weighing functions of the system. In the listed component details, PWI-D includes 7000d (III) accuracy class, RS232 communication, adjustable Modbus protocol, and plastic IP54 housing.
- Accuracy class: 7000d (III)
- Input sensitivity: 0.5 μV/digit
- RS232 communication
- Adjustable Modbus protocol
- Housing: plastic, IP54
- Power supply: 12-24V AC / 12-36V DC, 5W
See component details: PWI-D indicator.
CD-RM rocker mounting kit
This 120 ton model also uses the CD-RM rocker mounting kit. The system is presented as a way to help protect the load cell assembly from lateral forces and is suitable for installations where expansion and vibration conditions can affect weighing stability.
- Rocker mounting kit design
- Helps protect load cells from lateral forces
- Suitable for lateral expansion conditions
- Suitable for vibration-sensitive installations
- Used with the CD load cell family
See component details: CD-RM rocker mounting kit.
Model matrix
Available 120 ton models
Review the listed 120 ton platform-length options below before requesting the exact configuration.
| Capacity | Model name | Model code | Minimum capacity | Division | Platform dimensions | Platform | Datasheet |
|---|---|---|---|---|---|---|---|
| 120T | DVALI Super Heavy Truck Scale 120 Ton - 3 × 16 m | 120T-SH-0316 | 1000 kg | 50 kg | 3 × 16 m | Steel | Request 3 × 16 m datasheet |
| 120T | DVALI Super Heavy Truck Scale 120 Ton - 3 × 18 m | 120T-SH-0318 | 1000 kg | 50 kg | 3 × 18 m | Steel | Request 3 × 18 m datasheet |
| 120T | DVALI Super Heavy Truck Scale 120 Ton - 3 × 20 m | 120T-SH-0320 | 1000 kg | 50 kg | 3 × 20 m | Steel | Request 3 × 20 m datasheet |

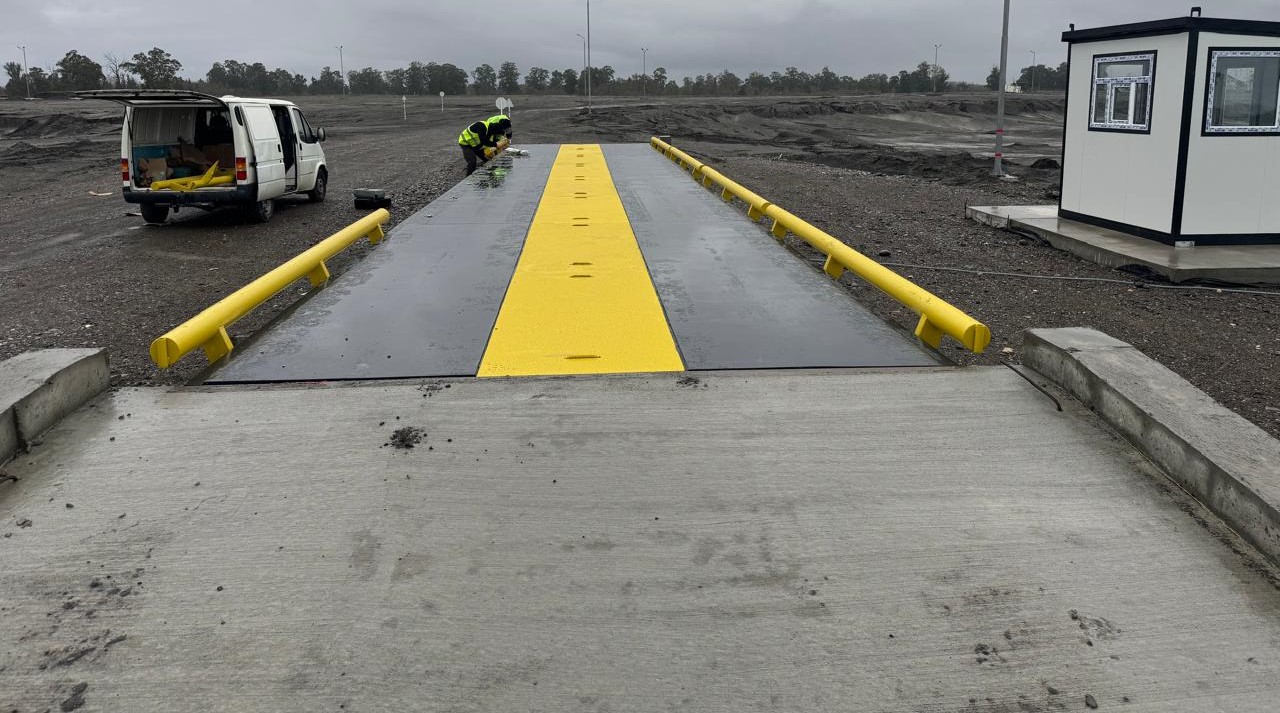

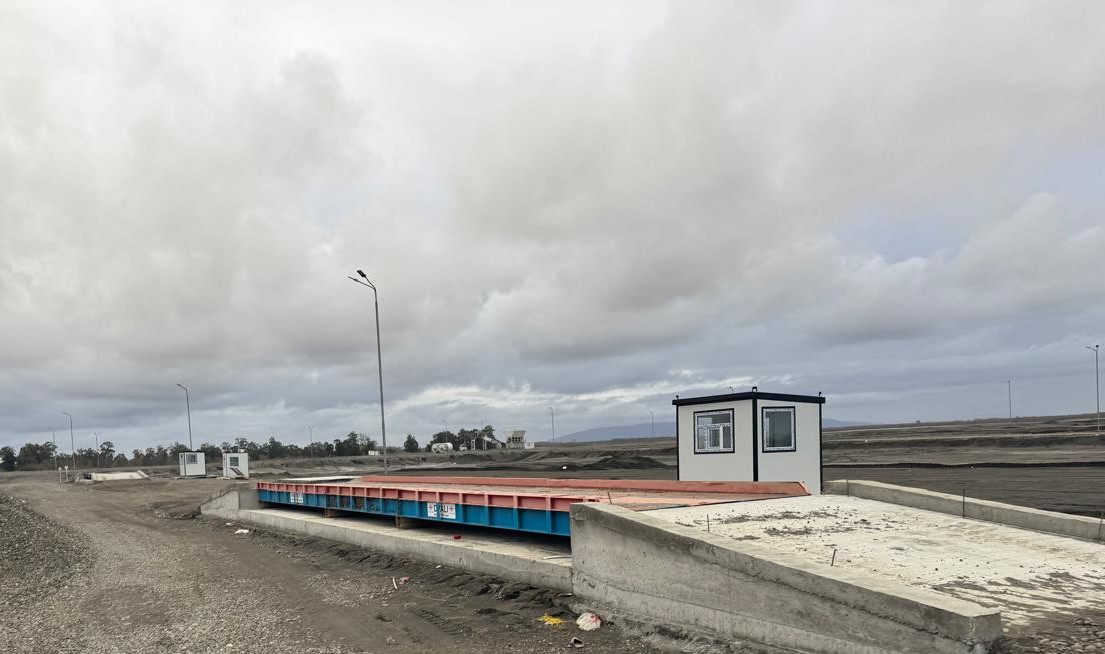

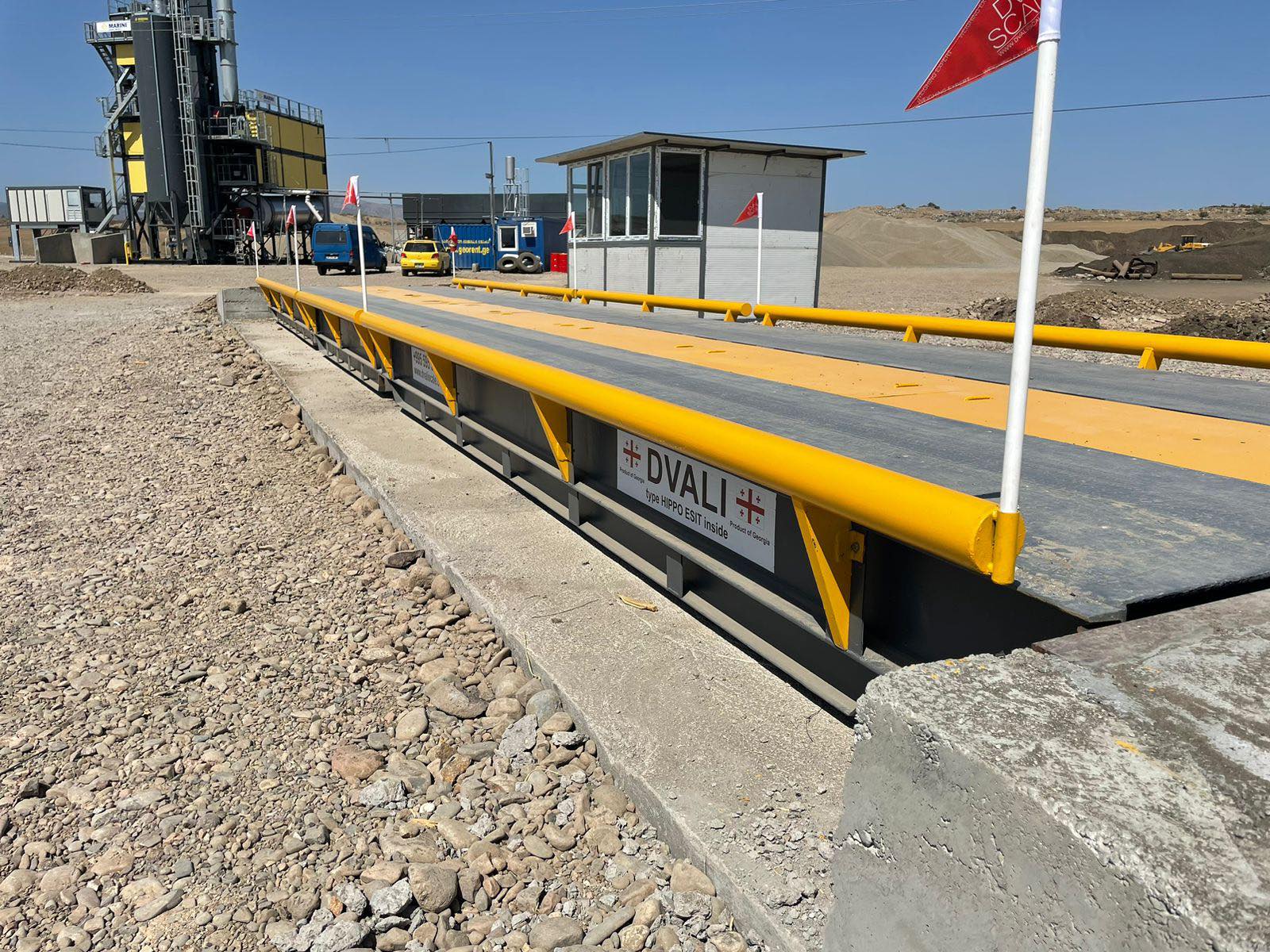

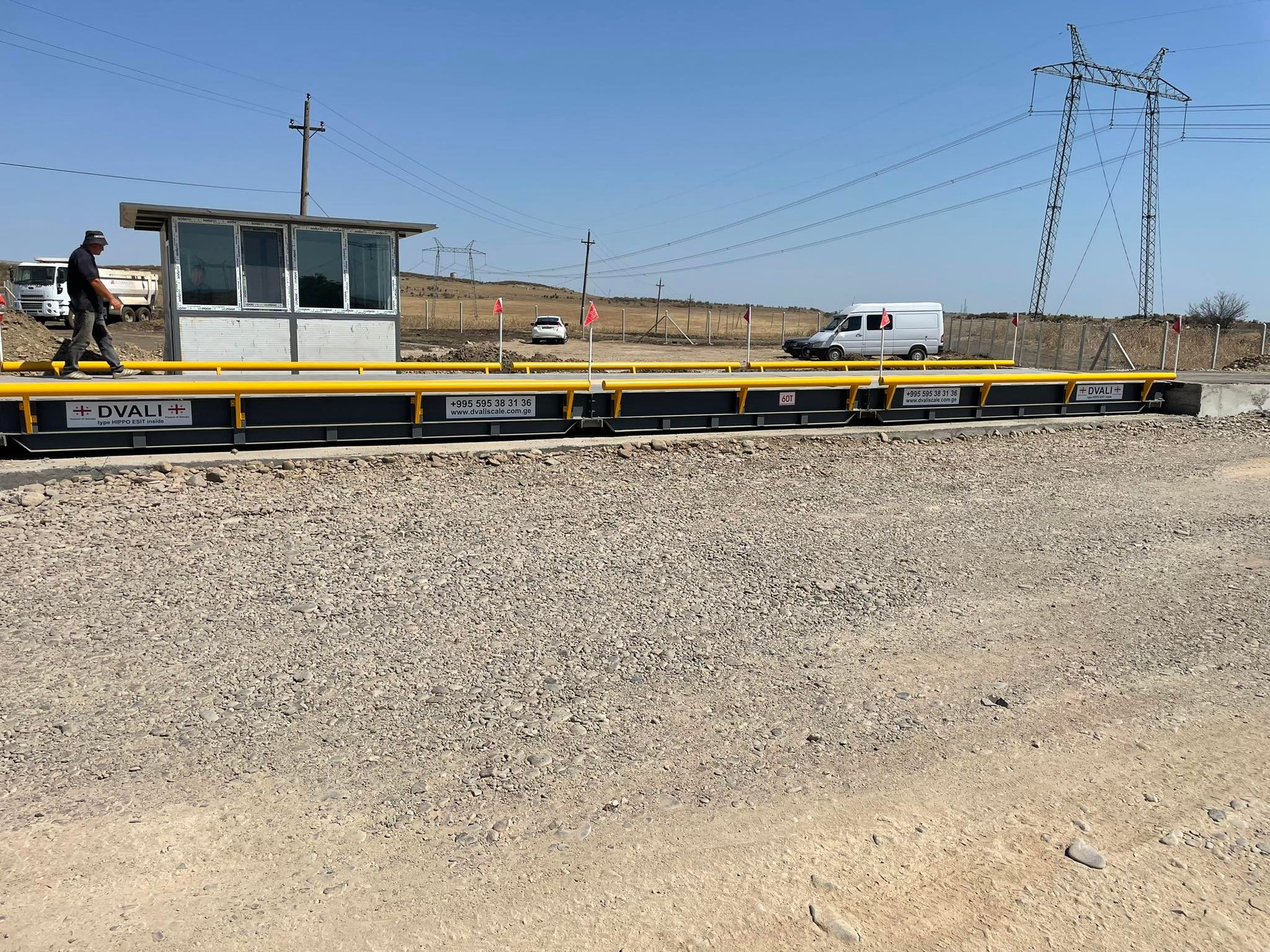

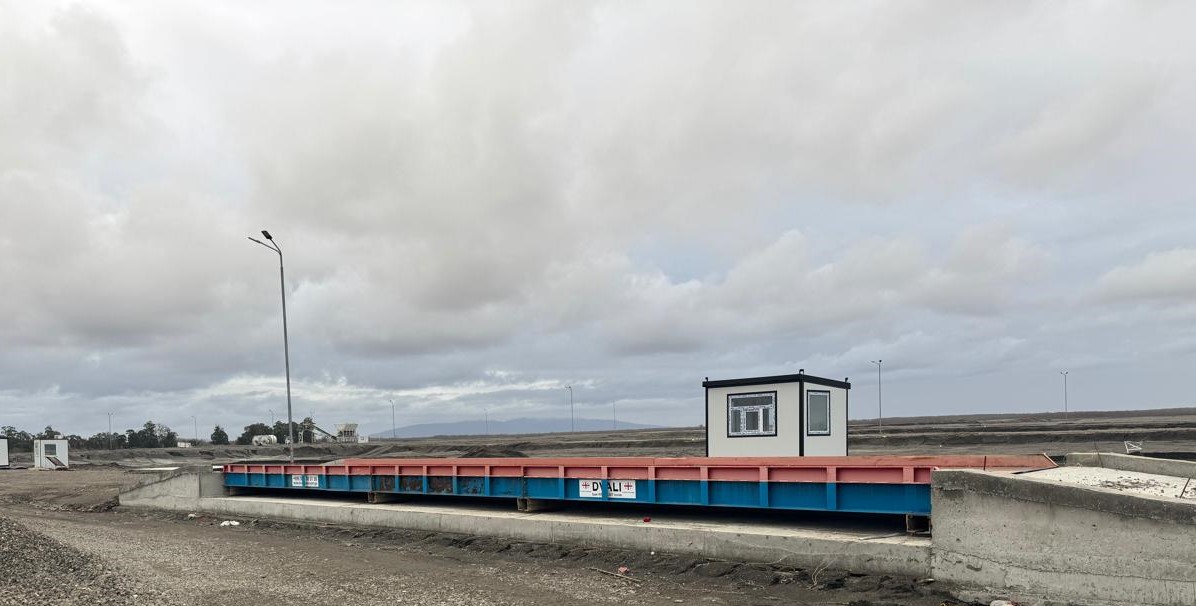

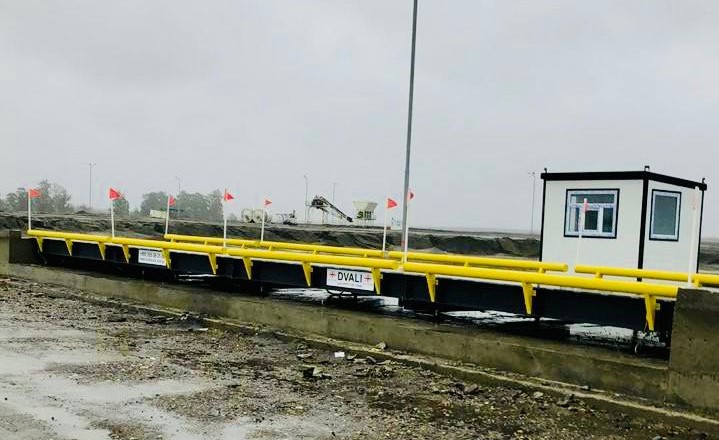

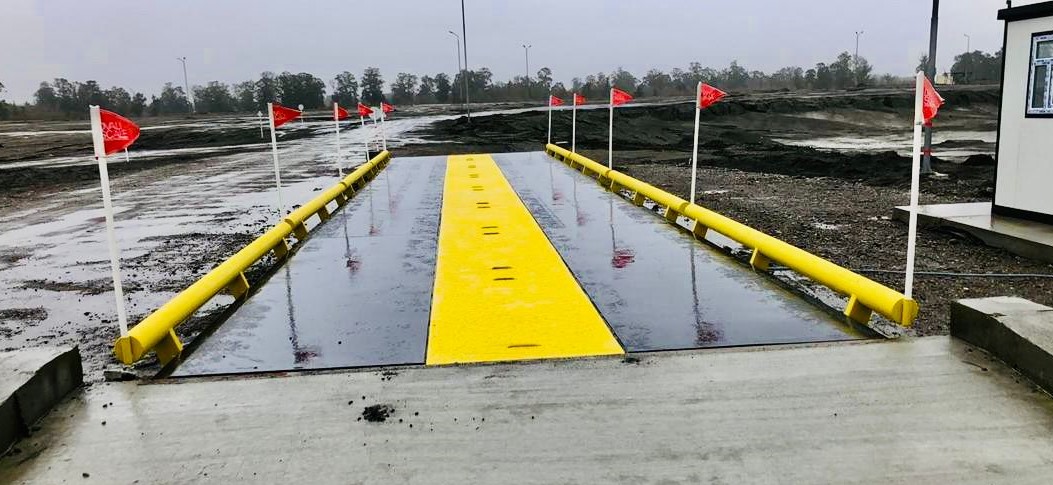

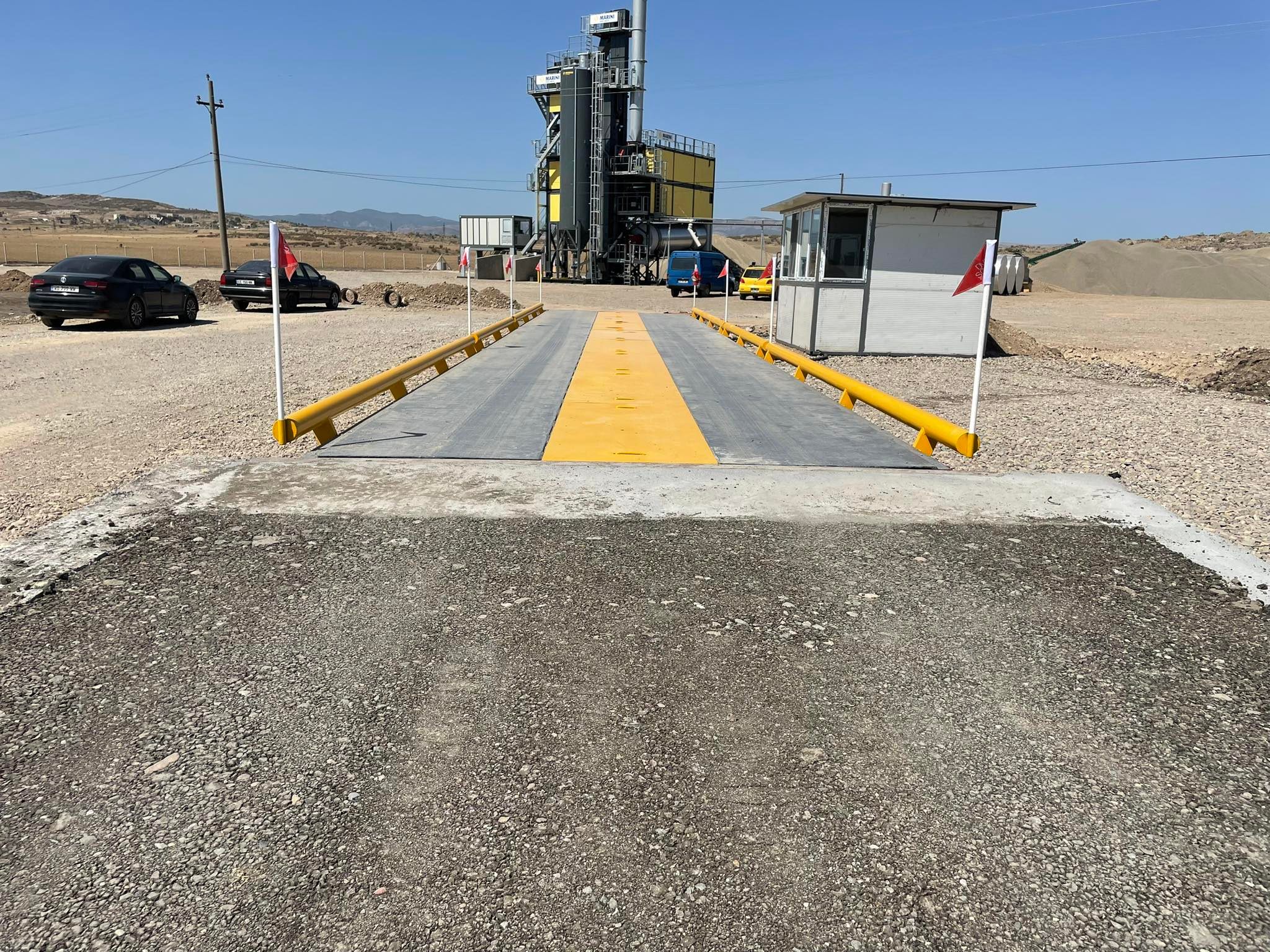

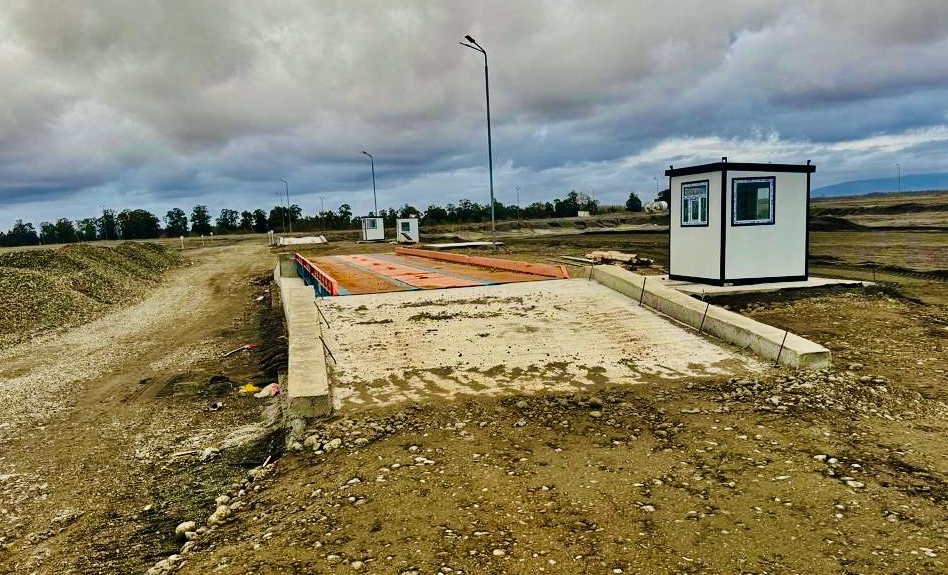

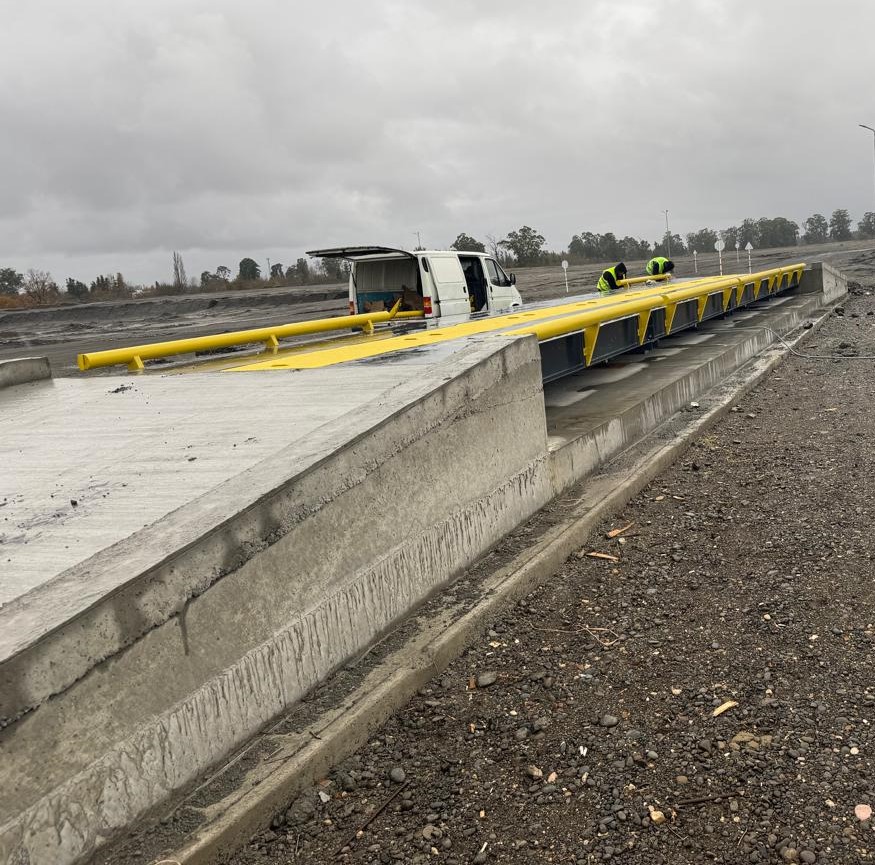

Gallery
Product, structure, and installation images
Visual references for the exact 120 ton DVALI Super Heavy model page.
FAQ
Frequently asked questions
Which platform dimensions are available for the 120 ton DVALI Super Heavy truck scale?
The 120 ton version is listed in 3 × 16 m, 3 × 18 m, and 3 × 20 m platform dimensions.
Which load cell configuration is used on this model?
This configuration uses 10 CD 30 load cells together with a J10 junction box.
Which indicator is used on this model?
The indicator used for this exact 120 ton truck scale is PWI-D.
Which mounting kit is used with this model?
The model is configured with the CD-RM rocker mounting kit.
What installation type is used?
This 120 ton Super Heavy truck scale is designed for pitless installation.
What warranty is offered?
The stated warranty period for this model is 5 years.
Request a quote
Request your 120 ton Super Heavy configuration
Send your preferred platform length, site details, and project requirements. DVALI Scale can help you review whether this exact 120 ton configuration is the right fit for your job.
