40 × 50 cm platform • 300 kg capacity
Platform size
40 × 50 cm
Capacity
300 kg
Load cell system
Single load cell
Protection
IP68

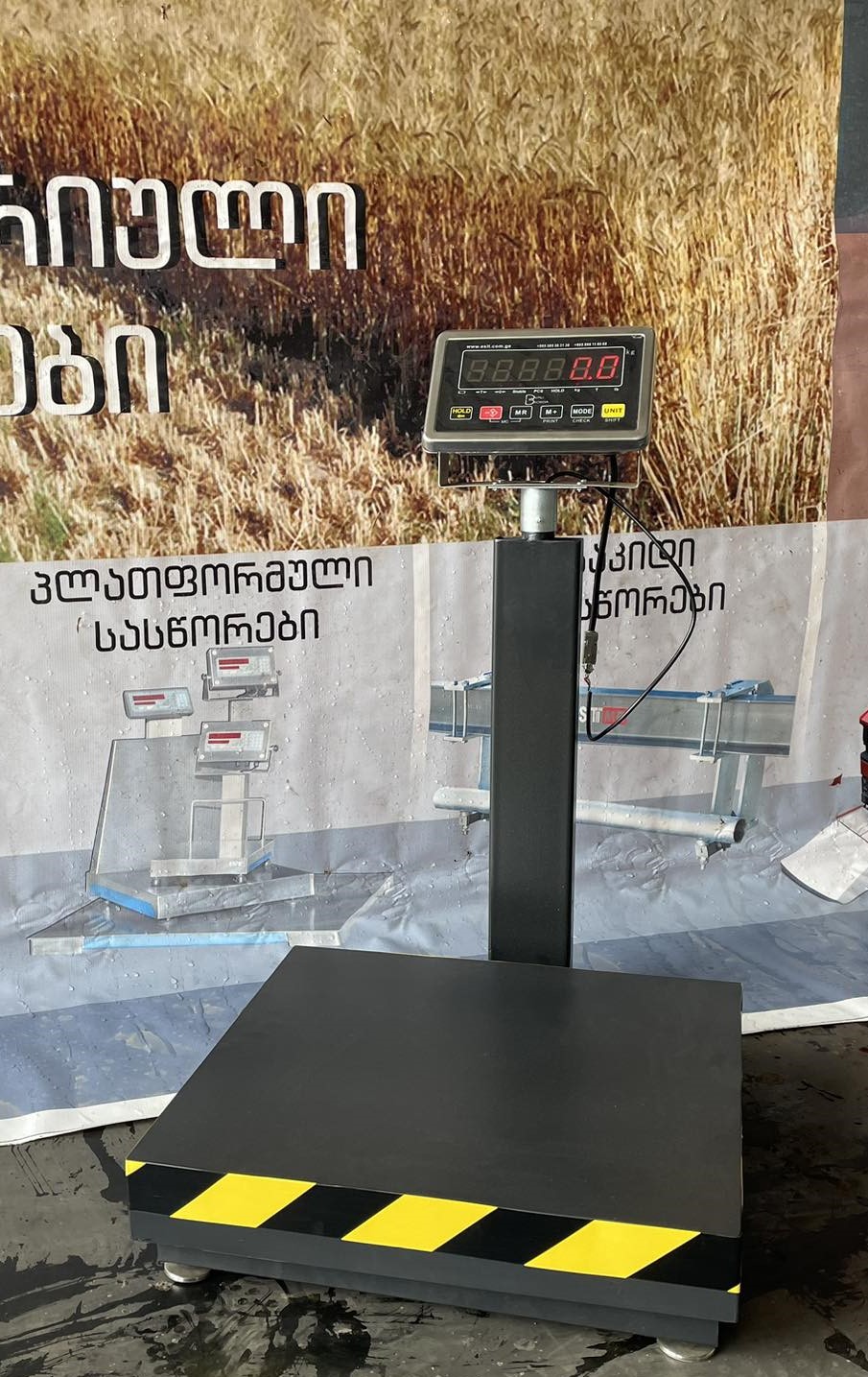

DVALI 300 kg Platform Scale – 40 × 50 cm
This 40 × 50 cm platform scale combines a compact working footprint with a higher 300 kg capacity than the lighter version in the same size. It is suited to weighing tasks where floor space is limited but the load range needs to go beyond 150 kg. The model includes CE, a single load cell system, IP68 platform protection, standard overload protection, 100 g display division, and the DVALI DS 318 indicator. The standard version uses a steel pan and steel frame, while stainless steel pan and frame are available as an option.
Technical specifications
Key specifications for the exact 40 × 50 cm / 300 kg model.
| Parameter | Value |
|---|---|
| Product type | Platform scale |
| Official product name | DVALI 300 kg Platform Scale – 40 × 50 cm |
| Platform size | 40 × 50 cm |
| Capacity | 300 kg |
| Standard construction | Steel pan, steel frame |
| Optional construction | Stainless steel pan and frame |
| Load cell system | Single load cell |
| Platform protection class | IP68 |
| Indicator | Standard DVALI DS 318 indicator |
| Indicator protection class | IP54 |
| Display division | 100 g |
| Standard communication output | None |
| Optional interfaces / outputs | RS232 / Modbus / Ethernet / printer output / external display / Bluetooth / Wi-Fi |
| Optional functions | Piece counting / pricing / reporting |
| Legal-trade configuration | Available on request |
| Ex / hazardous-area configuration | Available on request |
| Overload protection | Included in standard configuration |
| Approval | CE |
| Calibration documentation | Factory calibration certificate |
| Operating temperature | -10°C...+40°C |
| Power supply | 220VAC - 50Hz with rechargeable battery 6V 4.5Ah |
| Accessory | Remote display as option |
| Warranty | 1 year |
| Typical application areas | Warehouses, goods receiving, packaging, internal logistics, and request-based food, pharma, biotech, chemical, refinery, and hazardous-area projects according to configuration |
This exact 40 × 50 cm / 300 kg model is a practical choice when a compact platform footprint is
required but the working range needs to handle heavier loads than the 150 kg version in the same size.
Gallery
Click any image to open a larger view.
Why this model works
A practical overview of where this version fits and why buyers choose it.
Where this model fits
This model is a practical fit for warehouse receiving, packaging support, internal logistics, and production-side weighing where the working area is limited but the load range needs to go beyond what the 150 kg version can handle. The 40 × 50 cm format keeps the footprint compact while the 300 kg capacity provides more headroom for heavier daily loads.
- Warehouse receiving and internal movement
- Packaging and dispatch support for heavier loads
- Production-side weighing in compact spaces
- Daily internal logistics tasks with limited floor area
- Food, pharma, biotech, chemical, refinery, and hazardous-area projects according to requested configuration
Why buyers choose this format
Buyers choose this version when they want to keep the compact 40 × 50 cm platform footprint while increasing the working range to 300 kg. It combines space efficiency, IP68 platform protection, standard overload protection, the DVALI DS 318 indicator, and the option to request stainless steel construction or extra functions according to the project.
- 40 × 50 cm platform with 300 kg working range
- Higher load range than the 150 kg model in the same size
- Single load cell system with IP68 platform protection
- Steel pan / steel frame standard version
- Optional stainless steel construction and optional interfaces
Indicator, documents, and options
The practical information a buyer usually needs before requesting a quotation.
Standard operating setup

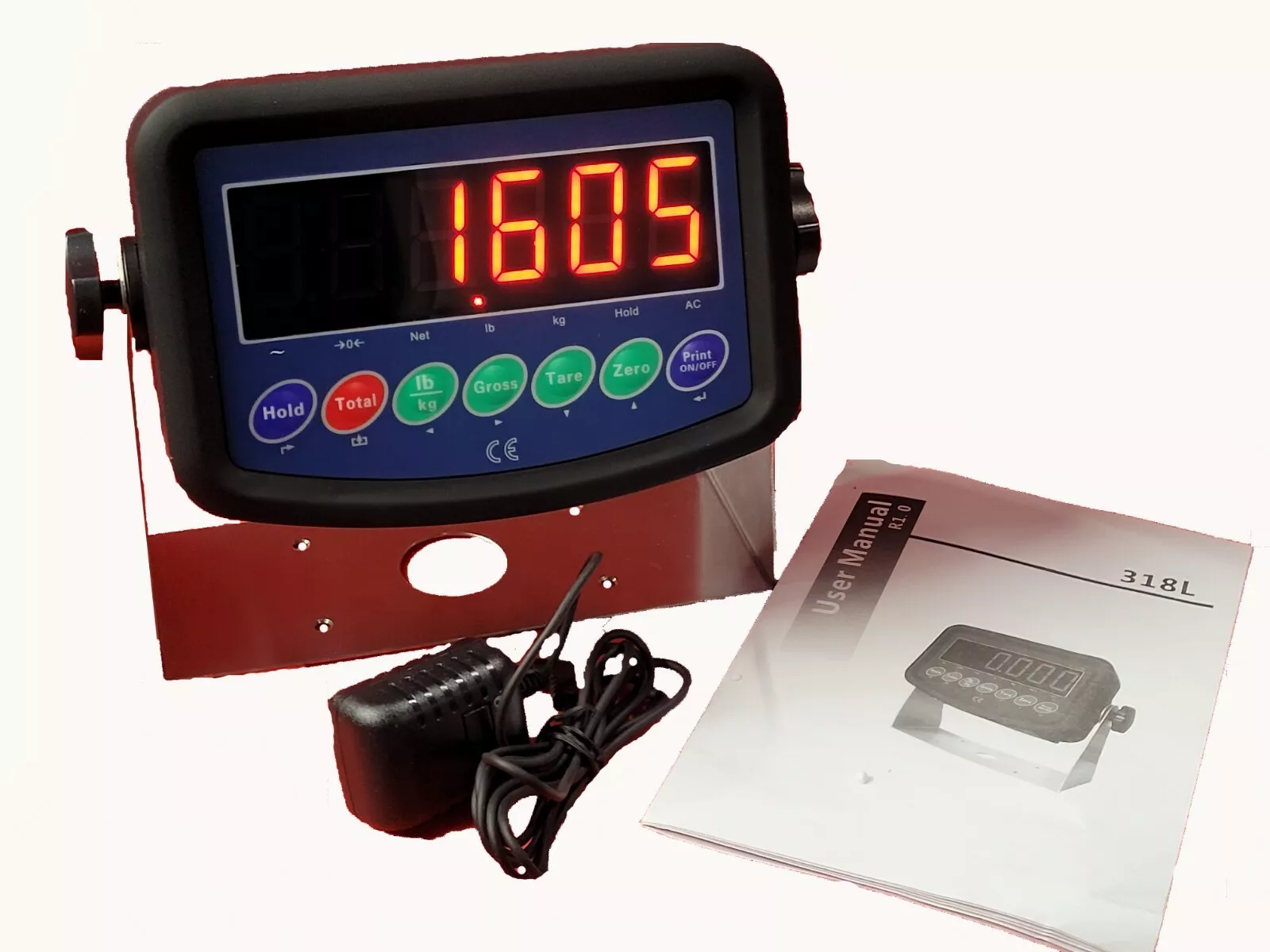

The standard indicator is DVALI DS 318 with IP54 protection. The model uses 220VAC - 50Hz power with a rechargeable 6V 4.5Ah battery.
Publicly confirmed support information
CE is mentioned for this model and the package includes a factory calibration certificate. The warranty period is 1 year.
Interfaces, functions, and request-based versions
RS232, Modbus, Ethernet, printer output, external display, Bluetooth, Wi-Fi, piece counting, pricing, and reporting are available as options. Legal-trade and Ex / hazardous-area configurations are available on request.
Standard configuration and support
The key confirmed items and support details for this exact model.
What defines this model
- 40 × 50 cm platform
- 300 kg maximum capacity
- Steel pan with steel frame
- Single load cell system
- IP68 platform protection
- DVALI DS 318 indicator
- Standard overload protection
Configuration path and documentation
- Stainless steel pan and frame option
- Remote display option
- Factory calibration certificate
- 1-year warranty
- Legal-trade configuration on request
- Ex / hazardous-area configuration on request
Frequently asked questions
Answers to common questions about configuration, documents, and available options.
What is the maximum capacity of this model?
The maximum capacity of this model is 300 kg.
What is the platform size?
The platform size is 40 × 50 cm.
What is the standard construction?
The standard version uses a steel pan and steel frame. Stainless steel pan and frame are available as an option.
Which indicator is supplied as standard?
This 300 kg / 40 × 50 cm version is supplied as standard with the DVALI DS 318 indicator and IP54 protection.
Are extra interfaces and functions available?
Yes. Optional interfaces and functions can include RS232, Modbus, Ethernet, printer output, external display, Bluetooth, Wi-Fi, piece counting, pricing, and reporting.
Does this model include CE and calibration documentation?
Yes. CE is mentioned for this model, and the package includes a factory calibration certificate.
Next step
Need this exact 40 × 50 cm / 300 kg model?
Contact DVALI Scale for pricing, configuration guidance, and support for this platform scale when you need a compact 40 × 50 cm footprint with a stronger 300 kg working range.
